Pneumatic valve actuator HL83C

rotaryportablesmall

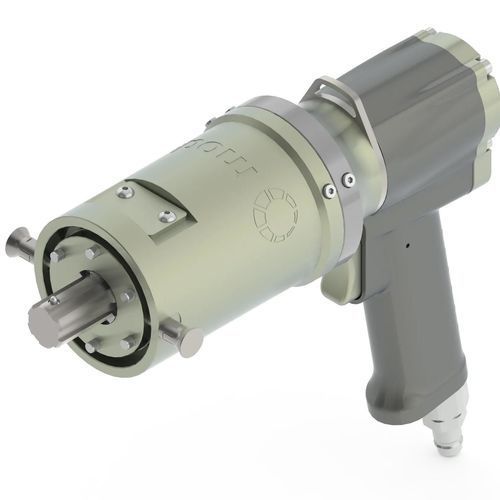

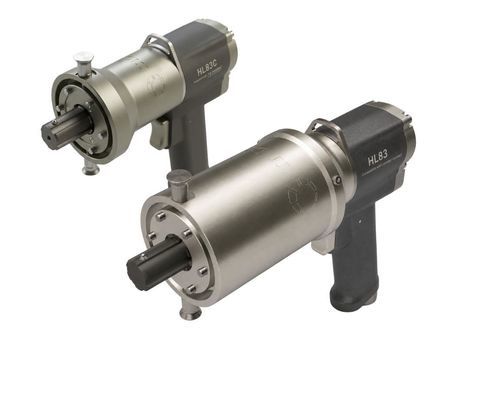

Modec pneumatic portable valve actuators HL83C are the most compact and lightweight. Despite their small size, they offer a wide range of power options and can perform in any environment, including the most challenging ones. They are certified ATEX II 2 GD c IIC T6 to T4 (except when fitted with a revolution counter). Additionally, the maximum torque can be easily controlled by adjusting the air supply pressure, ensuring safe operation for your valves. Specifications - Straight - Free speed (RPM) - 4 bars: 150 - 5 bars: 160 - 6 bars: 170 - 7 bars: 180 - Max torque (Nm) - 4 bars: 90 - 5 bars: 110 - 6 bars: 130 - 7 bars: 150 - Options - HL83CE-077 - HL83CS-258 - Free speed (RPM) - 4 bars: 45 - 5 bars: 48 - 6 bars: 51 - 7 bars: 503 - Max torque (Nm) - 4 bars: 302 - 5 bars: 369 - 6 bars: 436 - 7 bars: 503 - ✔ - HL83CH-564 - Free speed (RPM) - 4 bars: 20 - 5 bars: 22 - 6 bars: 23 - Max torque (Nm) - 4 bars: 659 - 5 bars: 806 - 6 bars: 952 - ✔ Warning! Do not use the actuator when the torque is higher than 740 lb.ft or 440 lb.ft with RA30, BJH01 and TM004. Use pressure to limit torque. Connections & lubrications - Reference - Air conso (Nl/min): 1200 - Connection: G 1/2 - Ø Connection min (mm): 8.2 - Ø Pipe min (mm): 12 - Lubrication (drops/min): 6 - FRL: AC107 - SAT Box: AC118 Layout - Reference - Weight (kg) - HL83CE-077: 3.2 - HL83CS-258: 5.6 - HL83CH-564: 6.3 Available options for the HL83C - Digital revolution counter* (option code 02) - Digital revolution counter can’t be ATEX certified. Accessories - Straight heads - Torque multiplier - Right angle head RA30 - Banjo heads - Adaptors: with fingers, with spokes, fixed, interfaces - Torque reaction systems: Reaction arms, Telescopic bipod, Articulated reaction arm fixed to vehicle trailer hitch, Foot held articulated reaction arm, Other torque reaction systems - Air management: Air Filtration, pressure Regulation and Lubrication units (FRL), Safety Air Treatment Box (SAT Box) - Other accessories: Transport cases, kit box Technical characteristics / specifications - Model: HL83C (variants: HL83CE-077, HL83CS-258, HL83CH-564) - Type: Pneumatic portable valve actuator - ATEX II 2 GD c IIC T6 to T4 certified (except with revolution counter) - Max torque: up to 952 Nm (depending on configuration) - Air consumption: 1200 Nl/min - Connection: G 1/2, min Ø 8.2 mm, min pipe Ø 12 mm - Lubrication: 6 drops/min - Weight: from 3.2 kg to 6.3 kg depending on variant - Available options: Digital revolution counter (not ATEX certified)
