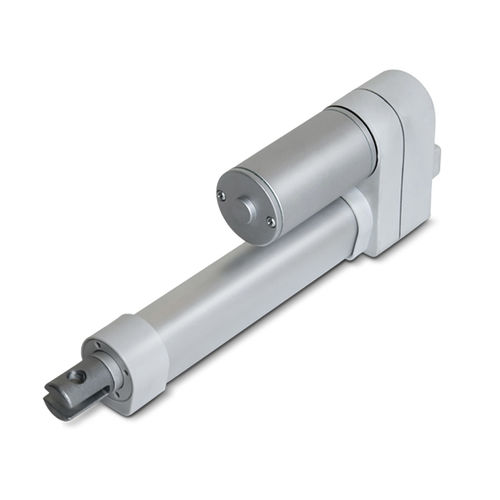

Linear actuator VM21electricaluminumDC
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Material
- aluminum
- Motor
- DC
- Voltage
- 24 V
- Applications
- industrial, for medical applications, for furniture
- Other characteristics
- compact, positioning, with integrated limit switch, pull
- Stroke
Max.: 400 mm
(15.748 in)Min.: 100 mm
(3.937 in)- Force
2,000 N
- Speed
Max.: 18.8 mm/s
Min.: 5.1 mm/s
- Ambient temperature
Max.: 65 °C
(149 °F)Min.: -20 °C
(-4 °F)
Description
VM21 is a compact and quiet actuator which is suitable for various applications with limited installation space, such as recliners, beds, and other applications.
Main applications: Industrial, furniture, medical
Technical Data
- Input voltage: 24V DC
- Typical speed at no load: 18.8 mm/sec
- Typical speed at full load: 5.1 mm/sec (2000N load)
- Noise level: ≦50dB
- IP Protection level: IPX5
- Color: Aluminum grey
- Preset limit switches
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- Certified: CE Marking, EMC Directive 93/42/EEC and 2014/30/EU
Options
- Positioning signal feedback with Hall effect sensor x 2
