Conveyor for the food industry

chaincurvedstraight

Overview

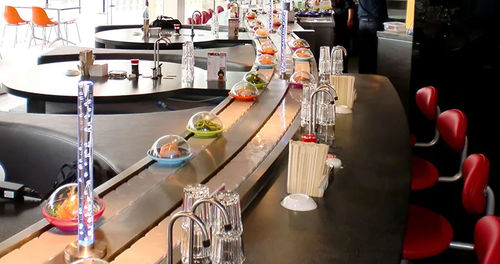

Modular sushi conveyor system designed for restaurants, business displays and industrial assembly lines. Modular design allows flexible layout and assembly; frames can be coated in customizable colors and textures.

Applications

• Restaurant – Sushi, Hot Pot, Dim Sum or Shabu Shabu
• Business – Window Showcase Display, Art Exhibition or Show Room Display
• Industrial – Parts Assembly Lines

Materials & Finishes

• Aluminum frames – natural anodized or powder coat finish
• Stainless steel frames – hairline, mirror or powder coat finish
• Customized colors & texture options

Layouts & Modules
Available track/layout options: Single Track, Double Track, Combine Track, Curve Layout, Double Deck Layout, Typical Layout.

Standard Modules (examples shown on page)

• 45 Deg Bend
• 90 Deg Drive
• 90 Deg Bend
• Straight Section
• Tee Bend
• X Bend
• 180 Deg Drive
• 180 Deg Bend
• R Bend Right / R Bend Left

Profiles / Series (overview)
Multiple conveyor profile types and sizes are available for different capacities and aesthetics (aluminum and stainless steel options), see technical tables below for exact dimensions.

Delivery & Experience

• Delivered to regions including America, South-East Asia, Korea and Europe
• 25+ years experience
• 2500 projects completed

Technical tables (each table represented as rows separated by <br>)

Aluminum profile (example)
Type | Medium | Large
Profile Width | 170 mm | 376 mm
Profile Height | 65 mm | 65 mm
Chain Width | 85 mm | 85 mm
Material | Aluminum | Aluminum
Finishing | Natural Anodized or Powder Coat | Natural Anodized or Powder Coat

Stainless Steel profile (set A)
Type | Medium | Large
Profile Width | 113 mm | 319 mm
Profile Height | 74 mm | 74 mm
Chain Width | 85 mm | 85 mm
Material | Stainless Steel | Stainless Steel
Finishing | Hairline, Mirror or Powder Coat | Hairline, Mirror or Powder Coat

Stainless Steel profile (set B)
Type | Medium | Large
Profile Width | 170 mm | 376 mm
Profile Height | 74 mm | 74 mm
Chain Width | 85 mm | 85 mm
Material | Stainless Steel | Stainless Steel
Finishing | Hairline, Mirror or Powder Coat | Hairline, Mirror or Powder Coat

Stainless Steel profile (set C)
Type | Medium | Large
Profile Width | 130 mm | 377 mm
Profile Height | 74 mm | 74 mm
Chain Width | 114 mm | 114 mm
Material | Stainless Steel | Stainless Steel
Finishing | Hairline, Mirror or Powder Coat | Hairline, Mirror or Powder Coat

Stainless Steel profile (set D)
Type | Medium | Large
Profile Width | 173 mm | 420 mm
Profile Height | 74 mm | 74 mm
Chain Width | 114 mm | 114 mm
Material | Stainless Steel | Stainless Steel
Finishing | Hairline, Mirror or Powder Coat | Hairline, Mirror or Powder Coat

Stainless Steel profile (set E)
Type | Medium | Large
Profile Width | 230 mm | 500 mm
Profile Height | 100 mm | 100 mm
Chain Width | 114 mm | 114 mm
Material | Stainless Steel | Stainless Steel
Finishing | Hairline, Mirror or Powder Coat | Hairline, Mirror or Powder Coat

Notes on modularity
Modules can be combined to create curved, straight, single/double tracks and custom showroom or industrial layouts. Frame coatings and textures are customizable according to project requirements.

Specifications

• Modular design for flexible layout and assembly
• Frame materials: Aluminum or Stainless Steel
• Aluminum finishing: Natural anodized or powder coat
• Stainless steel finishing: Hairline, Mirror or Powder Coat
• Available chain widths: 85 mm and 114 mm (depending on profile)
• Profile heights commonly: 65 mm, 74 mm or 100 mm (depending on profile)
• Profile widths vary by type: examples include 113 mm, 130 mm, 170 mm, 173 mm, 230 mm, 319 mm, 376 mm, 377 mm, 420 mm, 500 mm
• Standard modules include bends (45°, 90°, 180°), drives (90°, 180°), straight sections, tees, X bends and R bends (left/right)
• Layouts supported: Single Track, Double Track, Combine Track, Curve, Double Deck
• Proven delivery and deployment across multiple international regions
