Chain conveyor

transporthandlingcompact

Overview

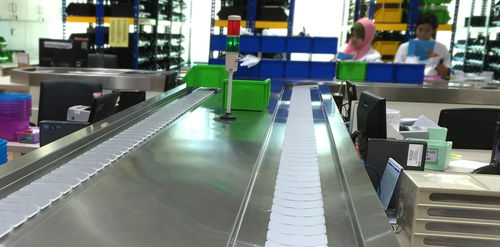

Conveyor designed to transport prescriptions and medication containers between preparation and dispensing stations in pharmacies. Suitable for integration into automated or manual workflows, with a compact 950 mm profile.

Key benefits

• Minimises staff movement and patient waiting time by streamlining transfer of prescriptions
• Adjustable speed to match processing rates (6–12 m/min)
• Stainless steel construction and aluminium support to support hygiene compliance

Technical specifications

• Material: Stainless Steel
• Finishing: Hair Line
• Profile dimension: 950 mm (W) x 100 mm (H)
• Maximum product size: 280 mm (L) x 210 mm (W)
• Chain type: 114 mm
• Support structure: Aluminium
• Conveyor speed (adjustable): 6 m/min – 12 m/min

Applications

• Prescription assembly and dispensing lines
• Hospital pharmacies and retail pharmacy back-of-house
• Integration with automated packaging or sorting systems

Customization and options

• Layout and length configurable to site requirements
• Optional guides, stops or sensors for product control
• Adaptable chain and support finishes to meet regulatory standards
