IP66 bell A6BM
12 V24 V115 V

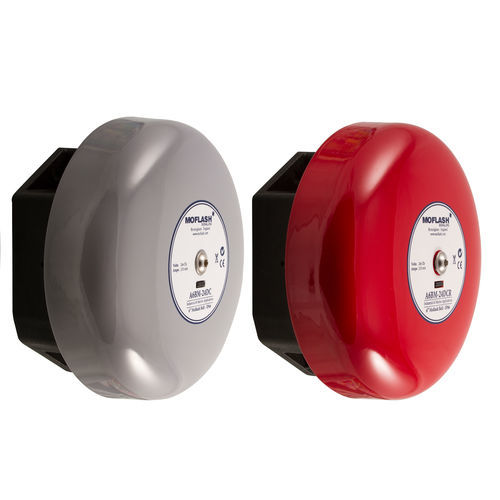

IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V - image - 2
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V - image - 3
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V - image - 4
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V - image - 5
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V - image - 6
IP66 bell - A6BM - Moflash Signalling - 12 V / 24 V / 115 V - image - 7
Add to favorites
Compare this product

Characteristics

Protection level
IP66
Voltage
12 V, 24 V, 115 V, 230 V
Options
waterproof, dust-proof, shock-proof
Noise level

Min.: 100 dB

Max.: 110 dB

Description

This range of 6” Solenoid driven Bells have been designed and manufactured to withstand harsh environmental conditions. Ideally suited for heavy-duty industrial & marine applications where rugged construction and a high weatherproof classification is required.The Bells produce a rich and clear ‘traditional’ alarm bell sound, free from mechanical clatter. The design allows for up to 4 x M20 cabling entry knockouts, two from above and one from either side to allow for ‘loop in/loop out’ cabling applications. Termination is made inside the enclosure and caters for 4 x 2.5mm² cables. If you require a Bell with a larger Gong, please refer to our A8BM Datasheet. Features • Anti Tamper Gong Bolt • Gong size 6'' (168mm) • Compliant for installation on: ■ Alarm System: EN 50130-4:2011 • Available in Red or Grey • M20 Cable Gland available to order – Code 50002 • Available in 12vDC, 24vDC or 85-280vAC/DC Material • Zinc Powder Coated Steel Gong • 30% Glass Filled Nylon 6 UL94 HB
