IP66 bell A8BM
24 V12 V230 V

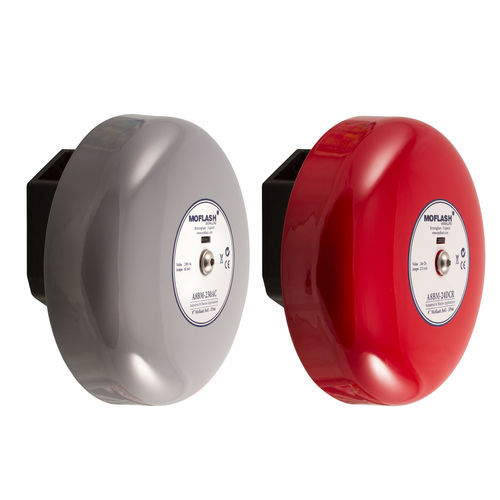

IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V - image - 2
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V - image - 3
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V - image - 4
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V - image - 5
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V - image - 6
IP66 bell - A8BM - Moflash Signalling - 24 V / 12 V / 230 V - image - 7
Add to favorites
Compare this product

Characteristics

Protection level
IP66
Voltage
12 V, 24 V, 230 V, 115 V
Options
waterproof, ultra-rugged, weather-resistant, dust-proof, shock-proof
Noise level

Min.: 100 dB

Max.: 110 dB

Description

The range of 8” Solenoid driven bells have been designed and manufactured to withstand harsh environmental conditions, ideally suited for heavy duty industrial & marine applications where rugged construction and a high weatherproof classification is required. The bells produce a rich and clear ‘traditional’ alarm bell sound, free from mechanical clatter. The design allows for up to 4 x M20 cabling entry knockouts, two from above & one on either side to allow for loop in/loop out cabling applications.Termination is inside the enclosure and caters for 4 x 2.5mm2 cables. If you require a smaller version, please refer to our A6BM Datasheet. Features • Anti Tamper Gong Bolt • Gong size 8''(219mm) • Compliant for installation on: ■ Alarm System: EN 50130-4:2011 • Available in Red or Grey • M20 Cable Gland available to order – Code 50002 • Available in 24vDC or 85-280vAC/DC Material: • Zinc Powder Coated Steel Gong • 30% Glass Filled Nylon 6 UL94 HB
