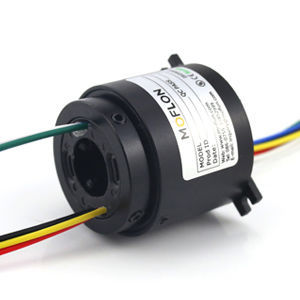

Electric slip ring MT1233 Series

EthernetUSBPROFIBUS

MT1233 series is a rotary electrical connector(rotary electrical joint) with bore size 12.7mm, OD 33mm, support 2~12 circuits. Standard compact rotary electrical joint with bore size 12.7mm(1/2”,used for<=12.7mm),OD 33mm.*Attention：if required through bore <12.7mm，this can besolved by adding a sleeve inside the bore. Rotary electrical connector is a connector used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection. Rotary electrical joint is a joint used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection when rotating 360°. ① The wiring mothed and length can be customized for both rotor and stator. ② Because of the structure limitation,length/height/OD can be customized on you request. ③ Support over 300 rings of current and signal. ④ Aviation plug,Terminal and Heat-shrink tube can be selected. ⑤ Hybrid slip ring for Yaskawa/Panasonic /Siemens servo control signal,main power,encoder ⑥ Support mixed high speed data transmission(including Ethernet,USB,Profibus,Ethercat,CANOPEN,CANBUS,RS232,RS485). ⑦ Mixed Temperature control signal and Thermocouple signal ⑧ Special environment customize for quakeproof and high temperature. ⑨ Hybrid Pnuematic/Hydraulic +electrica slip ring. ⑩ Max. Temperature :500℃. ⑪ Max.Voltage:110kV. ⑫ Max. rotating speed :10000RPM. ⑬ Max.current:5000A. ⑭ Military grade. ⑮ Options:Aqua mode，IP65 or IP68 . ⑯ Stainless steel Housing.
