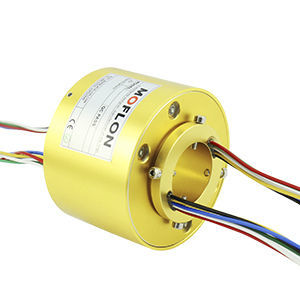

Electric slip ring MT3899 Series

EthernetUSBPROFIBUS

MT3899 series is standard rotating sip rings(electrical rotating connector) with bore size 38.1mm, OD 99mm, could support 2~72 rings, and can be customized up to 300 rings. *Attention：if required through bore 38.1mm，this can be solved by adding a sleeve inside the bore. A special electrical connector which can get power/signal passed from stationary part to rotating part when 360°continually rotating, at the same time, all electrical wires is not twisted. moflon supply full range of sip rings and electrical rotating connectors for automated welding equipment,conveyor systems,custom machinery,fabrication equipment,food processing machinery,injection presses,intelligent machinery,laminating equipment,machine tools,manipulators, electric,material handling systems,packaging machinery,pallet wrappers,paper processing machinery,plating machinery. ① The wiring mothed and length can be customized for both rotor and stator. ② Because of the structure limitation,length/height/OD can be customized on you request. ③ Support over 300 rings of current and signal. ④ Aviation plug,Terminal and Heat-shrink tube can be selected. ⑤ Hybrid slip ring for Yaskawa/Panasonic /Siemens servo control signal,main power,encoder ⑥ Support mixed high speed data transmission(including Ethernet,USB,Profibus,Ethercat,CANOPEN,CANBUS,RS232,RS485). ⑦ Mixed Temperature control signal and Thermocouple signal ⑧ Special environment customize for quakeproof and high temperature. ⑨ Hybrid Pnuematic/Hydraulic +electrica slip ring. ⑩ Max. Temperature :500℃. ⑪ Max.Voltage:110kV. ⑫ Max. rotating speed :10000RPM. ⑬ Max.current:5000A. ⑭ Military grade.
