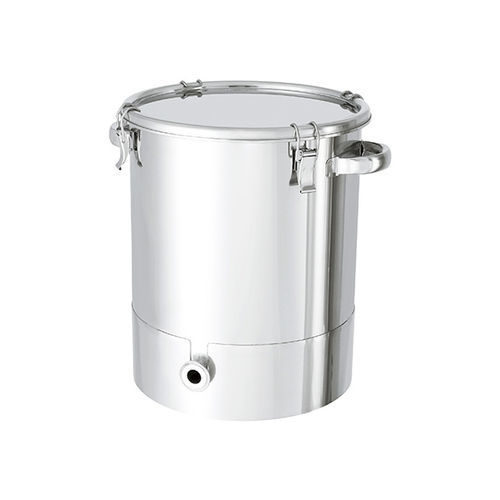

Cylindrical tank KTT-CTH series

stainless steelstoragedischarge

Storage and discharge container with inclined bottom plate. An airtight container that can be easily sealed with a clip. ○Since the bottom plate is inclined in the discharge direction, all liquid can be discharged. ○Since the discharge port is attached to the side of the container, the piping can be rotated quickly. ○The packing is made of silicone rubber which complies with the Food Sanitation Law. ○It is made of a thin plate with a thickness from t 1.0 to t 2.0 and can be easily handled when moving or cleaning containers. ○The corner of the bottom has an R-structure that prevents dirt from accumulating. ○Liquid can be sent by connecting a pump. Container Body/Hakama ... SUS 304 Lid [MF] ... SUS 304 Handle ... SUS 304 Catch Clip ... SUS 304 Packing [PQA/PQB] ... Silicon Rubber (Food Sanitation Law Compliant Product) *Type A packing [PQA] is supplied with KTT-CTH -30 to 47 H, and type B packing [PQB] is supplied with KTT-CTH -565 and above. ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.)
