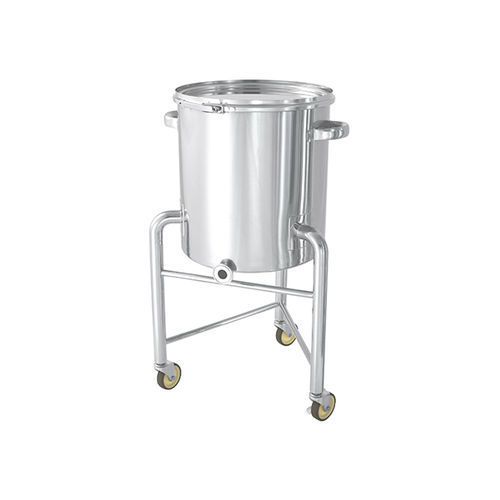

Liquids tank KTT-CTL-L series

stainless steelcylindricalmobile

Inclined bottom container with caster legs. A sealed container that can be sealed easily with a band. ○Since the bottom plate is inclined in the discharge direction, all liquid can be discharged. ○Since the discharge port is attached to the side of the container, the piping can be rotated quickly. ○Caster legs are attached, so the container can be moved between processes. ○The corner of the bottom has an R-structure that prevents dirt from accumulating. ○Since it is a made-to-order product, "Dimension" "Material" can be changed, and special processing can be done according to the application. ○Liquid can be sent by connecting a pump. Container Body/Leg ... SUS 304 Lid [CF/MF] ... SUS 304 *CTL lid [CF] for KTT-CTL-L -30 to 47 H and sealing lid [MF] for KTT-CTL-L -565 and above are included as standard. Handle/Lever Band [LB] ... SUS 304 Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces) Packing [PQL/PQB] ... Silicon Rubber (Food Sanitation Law Compliant Product) *For KTT-CTL-L -30 to 47 H, L-type packing [PQL] is supplied, and for KTT-CTL-L -565 and above, B-type packing [PQB] is supplied as standard. ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.)
