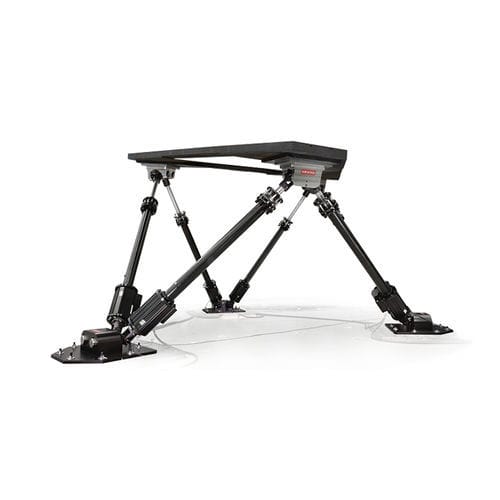

Motion hexapod E60

industrialfor heavy loadsprecision

Overview
Choose from a range of actuator strokes and payload capacities. These electric 6-DOF motion systems provide precise, repeatable platform motion with availability >99.8%, suitable for industrial test rigs, simulators and heavy-duty motion applications.

E12 Series — MB-E-6DOF/12/500KG

• Payload weight: 500 kg / 1,102 lb
• Heave (max): ±0.19 m (±7.5 in)
• Degrees of freedom: Six
• Acceleration — Surge: ±6.0 m/s² (±0.61 g); Sway: ±6.0 m/s² (±0.61 g); Heave: ±8.0 m/s² (±0.82 g)
• Velocity — Surge: ±0.60 m/s (±23.6 in/s); Sway: ±0.60 m/s (±23.6 in/s); Heave: ±0.50 m/s (±19.7 in/s)
• Angular rates — Roll: ±300°/s² (±40.0°/s); Pitch: ±300°/s² (±50.0°/s); Yaw: ±500°/s² (±50.0°/s)

E12 Series — MB-E-6DOF/12/1500KG

• Payload weight: 1,500 kg / 3,307 lb
• Heave (max): ±0.19 m (±7.5 in)
• Degrees of freedom: Six
• Acceleration — Surge: ±6.0 m/s² (±0.61 g); Sway: ±6.0 m/s² (±0.61 g); Heave: ±8.0 m/s² (±0.82 g)
• Velocity — Surge: ±0.60 m/s (±23.6 in/s); Sway: ±0.60 m/s (±23.6 in/s); Heave: ±0.50 m/s (±19.7 in/s)
• Angular rates — Roll: ±300°/s² (±40.0°/s); Pitch: ±300°/s² (±50.0°/s); Yaw: ±500°/s² (±50.0°/s)

E26 Series — MB-E-6DOF/26/1800KG

• Payload weight: 1,800 kg / 3,968 lb
• Heave (max): ±0.41 m (±16.1 in)
• Degrees of freedom: Six
• Acceleration — Surge: 7.0 m/s² (0.7 g); Sway: 7.0 m/s² (0.7 g); Heave: 10.0 m/s² (1.0 g)
• Velocity — Surge: 0.80 m/s (31.4 in/s); Sway: 0.80 m/s (31.4 in/s); Heave: 0.60 m/s (23.6 in/s)
• Angular rates — Roll: 250°/s² (±35.0°/s); Pitch: 250°/s² (±35.0°/s); Yaw: 500°/s² (±40.0°/s)

P26 Series — MB-EP-6DOF/26/3000KG

• Payload weight: 3,000 kg / 6,613 lb
• Heave (max): ±0.41 m (±16.1 in)
• Degrees of freedom: Six
• Acceleration — Surge: ±6.3 m/s² (0.63 g); Sway: ±6.3 m/s² (0.63 g); Heave: ±9.0 m/s² (0.90 g)
• Velocity — Surge: ±0.80 m/s (31.4 in/s); Sway: ±0.80 m/s (31.4 in/s); Heave: ±0.60 m/s (23.6 in/s)
• Angular rates — Roll: ±200°/s² (±35.0°/s); Pitch: ±200°/s² (±35.0°/s); Yaw: ±400°/s² (±40.0°/s)

E60 Series — MB-E-6DOF/60/14000KG

• Payload weight: 14,000 kg / 30,865 lb
• Heave (max): ±0.97 m (±38.4 in)
• Degrees of freedom: Six
• Acceleration — Surge: ±7.0 m/s² (0.71 g); Sway: ±7.0 m/s² (0.71 g); Heave: ±9.0 m/s² (0.91 g)
• Velocity — Surge: ±1.0 m/s (±39.4 in/s); Sway: ±1.0 m/s (±39.4 in/s); Heave: ±0.80 m/s (±31.5 in/s)
• Angular rates — Roll: ±150°/s² (±22.0°/s); Pitch: ±150°/s² (±21.0°/s); Yaw: ±150°/s² (±25.0°/s)

P60 Series — MB-EP-6DOF/60/14000KG

• Payload weight: 14,000 kg / 30,865 lb
• Heave (max): ±0.960 m (±37.8 in)
• Degrees of freedom: Six
• Acceleration — Surge: ±6.5 m/s² (0.66 g); Sway: ±6.5 m/s² (0.66 g); Heave: ±9.0 m/s² (0.92 g)
• Velocity — Surge: ±1.00 m/s (39.4 in/s); Sway: ±1.00 m/s (39.4 in/s); Heave: ±0.80 m/s (31.5 in/s)
• Angular rates — Roll: ±150°/s² (±22.0°/s); Pitch: ±150°/s² (±21.0°/s); Yaw: ±250°/s² (±25.0°/s)

Available literature / brochures (selection)
Overview brochures and detailed catalogs for P60, E60 and compact motion systems are available.
