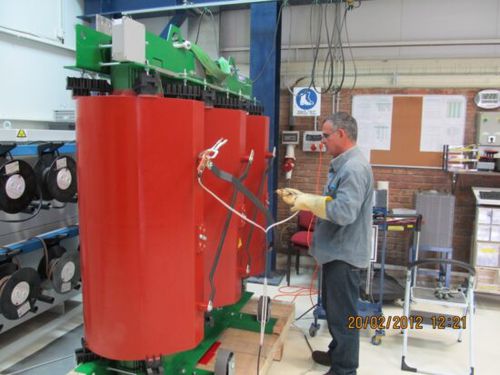

Transformer tester

voltageinsulation resistanceperformance

MOTOMEA Distribution Transformer Test Systems Routine Testing for Production (EOL) and Quality Assurance (QA) Type Testing at Laboratory (R&D) MOTOMEA is a globally leading supplier of distribution transformer testing systems. MOTOMEA DTSy systems give you the capability of testing dry and oil immersed distribution transformers, in a simple manner. MOTOMEA DTSy systems are complete turnkey systems, which fully implement standards: • IEC 60076 • IEEE C57.12.90/ANSI • GOST Main Features • The turnkey system implements IEC 60076-1, IEEE C57.12.90/ANSI, and GOST. • Winding resistance measurement (HV and LV). • No-load current and no-load loss measurements. • Short-circuit impedance and load loss measurements. • Heat run (Type Testing). • Partial discharge (Type Testing). • The applied voltage at each tapping. • Turns ratio. • Sound power level. • Dielectric tests – Separate-source voltage withstand the test. • Insulation resistance. • Induced voltage test Features: • Simple and easy implementation of routine tests defined in IEC 60076-1. • Used for Development and testing of new or repaired transformers. • Can be used for Quality control testing and EOL testing.
