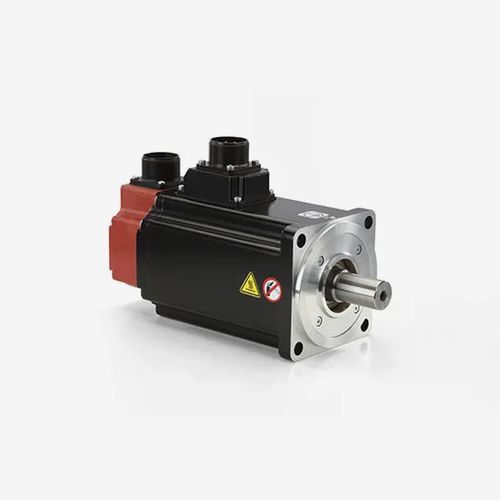

Brushless servomotor TETRA COMPACT – E series
AC400 V380 V

Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V
Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V
Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V - image - 2
Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V - image - 3
Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V - image - 4
Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V - image - 5
Brushless servomotor - TETRA COMPACT – E series - Motor Power Company - AC / 400 V / 380 V - image - 6
Add to favorites
Compare this product

Characteristics

Type
brushless, AC
Voltage
400 V, 380 V
Configuration
compact
Protection class
IP65
Other characteristics
high-precision, medium-inertia, motion control, controller, with built-in encoder
Power

Max.: 7,500 W
(10.2 hp)

Min.: 50 W
(0.07 hp)

Torque

Max.: 48 Nm
(35.402983 ft.lb)

Min.: 0.16 Nm
(0.11801 ft.lb)

Rotational speed

Max.: 6,000 rpm
(37,699.1118 rad.min-1)

Min.: 1,000 rpm
(6,283.1853 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Underlying the new TETRA COMPACT-E range of ac synchronous motor is an innovative design and manufacturing concept. The brushless servomotor and digital drive bundle is made for top-end applications. Superior standards in terms of quality and international certifications, careful selection of components and a wide choice of power ratings make this the best series for dynamic, accurate and reliable automation. The Tetra Compact-E (Enhanced) series is the third generation of brushless servomotors by Motor Power Company. In designing it, we tapped into all our previous knowledge on this technology and introduced the latest innovations in design and components. This product complies with the most important international certifications, offers many possible configurations of catalogue options, and is manufactured with a particularly automated process that has helped keep costs down, so it is undeniably an excellent choice when it comes to performance for price. A perfect match with the BL brushless servo controller series, allows flexible and precise motion control operations. Characteristics • Flange dimensions: 40 – 60 - 80 - 100 – 130 -180mm • Absolute and incremental encoder • UL 1004, CSA certification
