Brushless servo motor DUET FLEXI series
AC48 VIP65

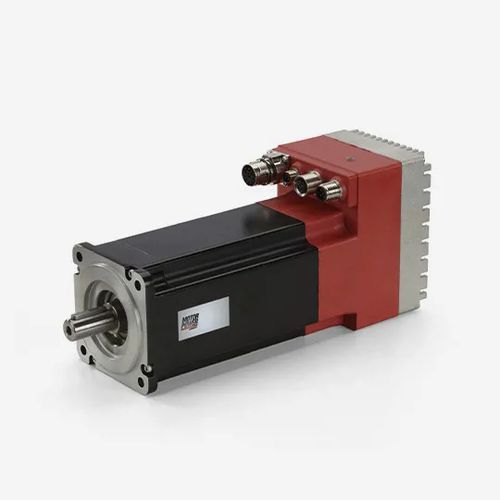

Brushless servo motor - DUET FLEXI series - Motor Power Company - AC / 48 V / IP65
Brushless servo motor - DUET FLEXI series - Motor Power Company - AC / 48 V / IP65
Brushless servo motor - DUET FLEXI series - Motor Power Company - AC / 48 V / IP65 - image - 2
Brushless servo motor - DUET FLEXI series - Motor Power Company - AC / 48 V / IP65 - image - 3
Brushless servo motor - DUET FLEXI series - Motor Power Company - AC / 48 V / IP65 - image - 4
Add to favorites
Compare this product

Characteristics

Type
brushless, AC
Voltage
48 V
Protection class
IP65
Applications
industrial
Other characteristics
motion control, EtherCAT, CANopen, UL certified
Power

Min.: 200 W
(0.27 hp)

Max.: 520 W
(0.71 hp)

Torque

Min.: 1.3 Nm
(0.958831 ft.lb)

Max.: 2 Nm
(1.475124 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

As extension of the drive integrated brushless servo motors range, DUET FLEXI responds to the increasing demand for full integrated motion control products with advanced functions. The line incorporates the characteristics of the DUET series and introduces options like absolute encoder feedback and Ethernet or Profibus connectivity. This series is easy to operate and program, in order to minimize the commissioning time and improve efficiency. Characteristics • Multi-turn absolute encoder, Resolver • Rated Torque from 1.3 Nm to 2 Nm • Sizes: 60mm and 80mm • 48 Vdc power supply • Optional brake • UL/CSA cURus certified insulation system • CANopen, Ethercat
