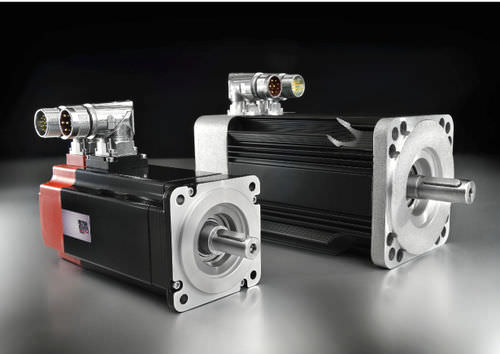

Brushless servomotor TETRA

ACpermanent magnetcompact

A range of salient poles brushless servomotors that , thanks to the dedicated design and the constructional shape, boasts extraordinary shape/per formance ratios. With excellent efficiency, high standard reliability, durable life and high electromagnetic immunity, TETRA COMPACT optimally answers every specific application requirement . The wide range of winding and feedback, together with its accessory range, contributes to the series versatility. Features 0.16 – 8.5 Nm Torque Sinusoidal wave form 3000 Rpm nominal speed 6000 Rpm maximum speed 8 poles motor with NdFeB magnets IP 65 protection Class F insulation Feedback: Resolver, SinCos encoder, TTL encoder, Hall sensors, absolute encoders Connection cables for signal and power Emergency brake with permanent magnets Planetary gearboxes Insulation system UL /CSA : cURus , DV155J File nr.:E216686 CE certified
