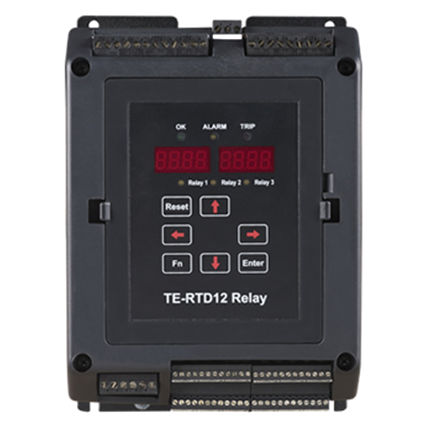

Temperature monitoring relay TE-RTD12

motorDIN railpanel-mount

TE-RTD12 Motor RTD Monitor / Relay Device The TE-RTD12 Relay device adds advanced RTD (Resistor Temperature Detector) and differential current monitoring capability to your new or existing motor system. The TE-RTD12 Relay device offers 12 built-in RTD inputs, 3 programmable output relays (5A), 2 isolated analog inputs (4-20mA), 1 isolated analog output (4-20mA), 3 isolated digital inputs, and differential current feedback monitoring. Additionally, an RS485 (2 wire) communication port is available for use with a master device (PLC / SCADA / Operator Interface) for the purpose of programming and/or monitoring. Programmable relay outputs are provided that can be configured for a system function or for use as a global Alarm or Trip based on temperature readout, which can be entered in ºC or ºF. A built-in event recorder stores fault history of past events with data points including Alarm / Trip Code, Current / Temperature value, Analog input value and Date / Time Stamp. The TE-RTD12 Relay device can be mounted on a back panel using the mounting bracket or DIN-Rail mount. Diff. Current Feedback Monitoring Programmable Temperatures (ºC/ºF) Real-time Clock RS485 Modbus RTU Communication Removable Terminal Blocks Digital Keypad
