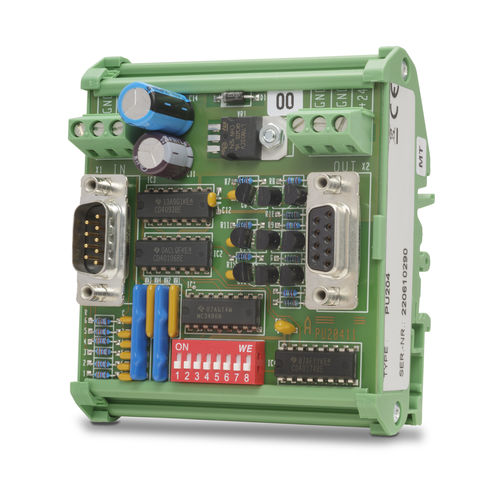

HTL level converter PU204

TTLRS-422

The PU204 signal converter converts RS422 / TTL signals into HTL signals. • Input for RS422 / TTL signals up to 200kHz • Output for HTL signals • Produces A / B direction information with 90 ° phase offset, a static HIGH / LOW direction signal, or separate directional pulses
