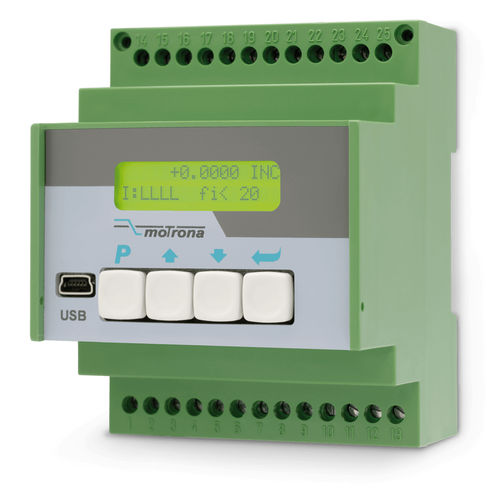

Frequency multiplier FM260

The frequency multiplier FM260 is used to multiply HTL or RS422 signals by a factor of your choice. The factor can be set from 0.0001 to 9.9999. Since the direction of rotation is taken into account in the multiplication, cumulative impulse errors cannot occur. • Input for HTL or TTL / RS422 signals • Output in the format A, / A, B, / B, Z, / Z, push-pull, [5 ... 30 VDC] • Frequencies up to 1 MHz • RS232 interface • Frequency multiplied by a proportional factor F1 and a reciprocal factor F2 • F1 and F2 adjustable from 0.0005 to 9.9999 • Backlit LCD display
