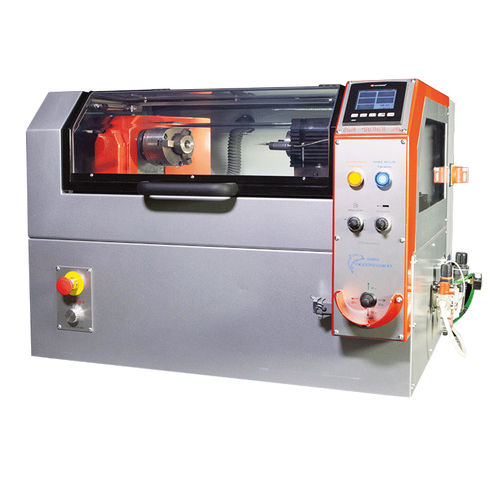

Internal cylindrical grinding machine M-IG100

CNCautomaticprecision

Automatic horizontal grinding machine – Chuck Ø100 mm – Programme management by computer numerical control – For dies from ø0.80 mm to ø30 mm – Machine precision : 5 μm – Grinding pass by motor step by step in micron – New motorised lead angle system (0 to 75°) – Angle precision : ±30’’ – Easy to use – Axis management by motor step by step allowing an advance in micron – Memorising of five operations in «learn» mode on the first die – Repetition of the memorised operations to reproduce an identical profile – Different types of spindles available (choice according to the material and the diameters to be ground) – Totally ducted working area for the user’s safety – Remote maintenance
