Intel Celeron/Core i7 processor suitable for diverse computing demands
Dual independent DVI-I displays
2 Gigabit Ethernet ports with M12 X-coded connectors
1 SATA connector and 2 CFast sockets for storage expansion
M12 A-coded power connector
Compliant with EN 50121-4
Complies with a portion of EN 50155 specifications
Ready-to-run Windows Embedded Standard 7 or Linux Debian 7
-40 to 70°C wide temperature models available
Supports SNMP-based system configuration, control, and monitoring
Overview

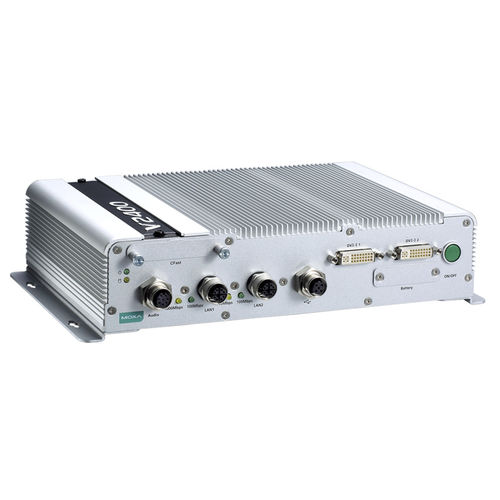

The V2406A Series embedded computers are based on the Intel 3rd generation processor, and feature 4 RS-232/422/485 serial ports, dual LAN ports, audio in/out, 3 USB 2.0 hosts, 2 CFast sockets, and 1 SATA storage socket. V2406A computers provide dual DVI-I outputs, and in addition are compliant with a portion of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making the computers suitable for a variety of industrial applications.
