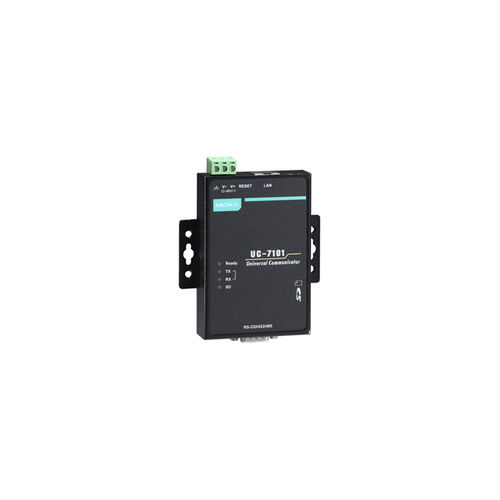

Embedded computer UC-7101

wall-mountedARM Cortex A9 Dual CoreUSB

MOXA ART ARM9 32-bit 192 MHz processor 16 MB RAM and 8 MB Flash ROM One 10/100 Mbps Ethernet port for network redundancy One software-selectable RS-232/422/485 port Select any baudrate from 50 bps to 921.6 Kbps SD socket for storage expansion Built-in real-time clock (RTC), buzzer, watchdog timer (WDT) Pre-installed μClinux Kernel 2.6 platform -40 to 75°C wide temperature model available DIN-Rail or wall mountable Robust fanless design Overview The UC-7101 may be Moxa's smallest RISC-based communication platform for embedded applications, but it is also one of the most powerful. The computer comes with one RS-232/422/485 serial port and a 10/100 Mbps Ethernet LAN port to provide users with a versatile industrial communication and embedded computing platform.
