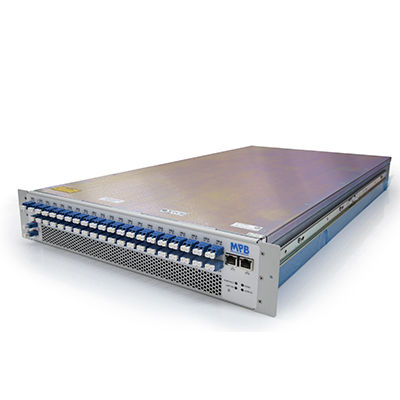

Optical amplifier DCI-SR / DCI-LR

multiplexabletransmission

The MPB’s DCI Optical Line System (OLS) is a complete DWDM line system for data center interconnect applications. It provides all of the optical grooming necessary for transmission of up to 40 DWDM PAM4 channels, covering the range of 5 km to 100 km SMF while maintaining the simplicity of zero-touch provisioning. The unit has been optimized for ease of data center operations based on the contributions of world-leading data center operators and successfully tested with Inphi’s ColorZTM PAM4 QSFP modules Features Zero-Touch Provisioning Supports between 4 and 40 Inphi ColorZTM PAM4 QSFP28 channels1 Automatically performs all the necessary channel equalization and dispersion compensation Fiber Integrity Monitor System for laser safety, enabling automatic laser shutdown (ALS) in the event of a fiber break or connector disconnect, and automatic laser restart (ALR) when the condition is recovered Automatic link distance measurement and fault location with OTDR Remote monitoring of far end unit Performance Monitoring to track max/min/average of key parameters on 15 min/daily/weekly basis CLI, Web GUI interface, SNMP v2/v3 Redundant fans and power supplies with hitless swap Application Provides high reliability and high bandwidth capacity fiber optical link between data centers
