Integrated circuit socket

integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
integrated circuit socket
Add to favorites
Compare this product

Characteristics

Options
integrated circuit

Description

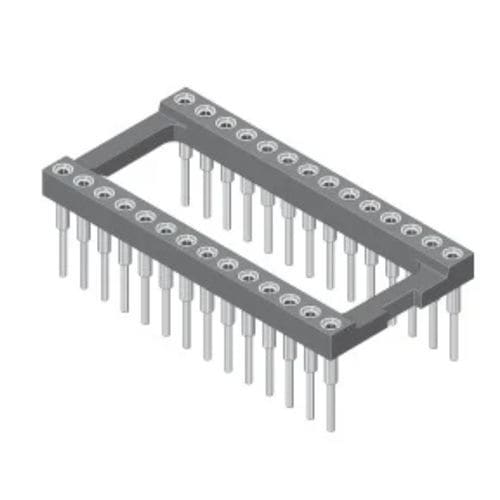

IC-sockets with machined contacts in all common pin counts and row spacing´s. Available with decoupling capacitor. Gender Female Pitch (mm) 2,54 Mating pin size (range) ø 0,40-0,56, 0,25x0,45 Board termination T - Through hole W - Wire wrap Orientation to PCB V - Vertical No of contacts 4, 6, 8, 10, 12, ... 48 No of rows 2 Row distance (mm) 5,08; 7,62; 10,16; 15,24; 22,86 Material contact Copper alloy Material clip Berylium copper Plating contact Sn Plating clip Au, Au 0,75 µ Insulator Style No Bar Material insulator High temp. thermoplast UL94V-0 Rated current 3,0 A Rated voltage 150 VRMS / VDC Withstand voltage 1000 VRMS for 1 minute Operating temperature -55°C to +125°C Max. processing temper. 260°C for 10 seconds Packaging Tube
