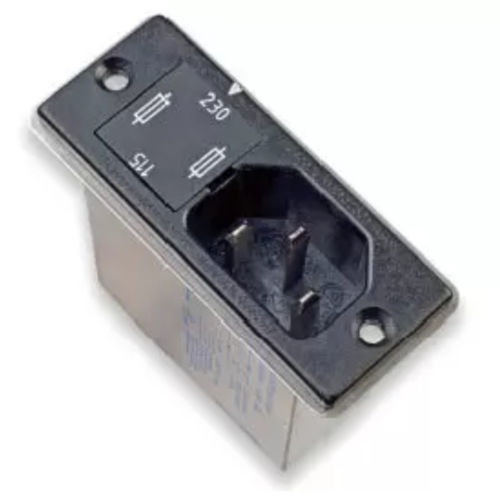

Fuse power entry module HGN 369 / 369-X-2X
with EMI filterIEC with 2-pole circuit breaker

fuse power entry module
fuse power entry module
Add to favorites
Compare this product

Characteristics

Options
fuse, with EMI filter, IEC with 2-pole circuit breaker
Current

1 A, 2 A, 3 A, 4 A, 6 A

Voltage

120 V, 250 V

Description

FEATURES The HGN-369 power entry modules are used in applications having the ON/OFF switch on front side but main input at the rear side. This series features an IEC Connector, voltage selector for four different voltages (100V, 120V, 220V, 240V), fuse holder for European 5 x 20mm fuse. The filter is enclosed in a metal housing to ensure maximum protection from common-mode and differential-mode interferences. These filters are also available for Medical equipment with low leakage current to comply with UL 544 & UL2601. APPLICATIONS Computer & networking equipment, Measuring & control equipment, Data processing equipment, laboratory instruments, Switching power supplies, other electronic equipment. TECHNICAL DATA Operating voltage 250 V / 50 Hz 120 V / 60 Hz Rated current, 40°C 1A / 2A / 3A / 4A / 6A Leakage current < 0,5 mA / 250 VAC Temperature range -25°C – +85°C Test voltage (VDE 0565) 1,8 kV / 50 Hz – 2 s
