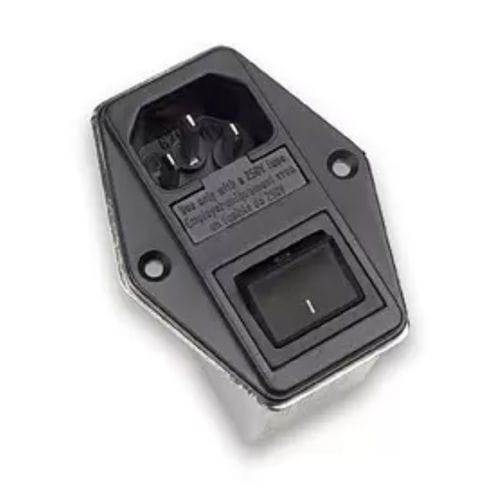

Power entry module with switch HGN 375
fusewith EMI filter

power entry module with switch
power entry module with switch
Add to favorites
Compare this product

Characteristics

Options
with switch, fuse, with EMI filter
Current

1 A, 2 A, 4 A, 6 A

Voltage

120 V, 250 V

Description

FEATURES The HGN-375 protects electronic equipment from common and differential mode line interference in the range of 10KHz up to 30MHz. This “combi-unit” is equipped with IEC connector, fuse holder for one or two 5 x 20 mm fuses, 2 pole on/off switch and fully enclosed metal housing. These filters are also available for Medical equipment with low leakage current. HGN-375 series filters are high performance filters and have been designed to bring various medical equipments into compliance with EN55011 and FCC Part 15J, Class B conducted emissions limits. APPLICATIONS Computer & networking equipment, Measuring & control equipment, Data processing equipment, laboratory instruments, Switching power supplies, other electronic equipment. TECHNICAL DATA Operating voltage 250 V / 50 Hz 120 V / 60 Hz Rated current, 40°C 1A / 2A / 4A / 6A Leakage current < 0,5 mA / 250 VAC Temperature range -25°C – +85°C Test voltage (VDE 0565) 1,8 kV / 50 Hz – 2 s

Catalogs
