embedded PC / Intel® Atom / Ethernet / industrial
Atom Silverthorne XL Z530P, 1.6 GHz, 512 kB | PIP6-11

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
embedded PC embedded PC - Atom Silverthorne XL Z530P, 1.6 GHz, 512 kB | PIP6-11
{{requestButtons}}

Characteristics

  • Type:

    embedded

  • Processor:

    Intel® Atom

  • Ports:

    Ethernet

  • Field:

    industrial

Description

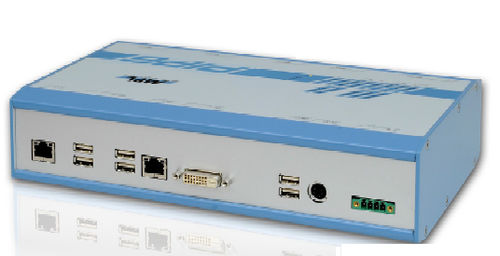

The PIP6-11 is an embedded industrial computer manufactured by MPL.

The computer is equipped with an Intel Atom Z530P processor, and a PoulsboXL US15WPT chipset. It has a fanless operation within a temperature range of -40°C to +75°C, without derating or throttling. It is reverse polarity-protected within an input power range of 8V DC to 36V DC.

The PIP6-11 has on-boar integrated features, such as 2 GigE ports, 4 serial parallel ports, and an on-board soldered memory. It has a Mini PCIe slot for WLAN, GPRS, UMTS, Fieldbuses, UPS, and other similar expansions.

The PC is certified by CE standards, and conforms with EN 60068 standards regarding shock and vibration features. It is enclosed in a rugged chromated aluminum housing, with an EMI protection.
