industrial with VPN function firewall
GUARD-F1

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
industrial with VPN function firewall industrial with VPN function firewall - GUARD-F1
{{requestButtons}}

Characteristics

  • Options:

    industrial with VPN function

Description

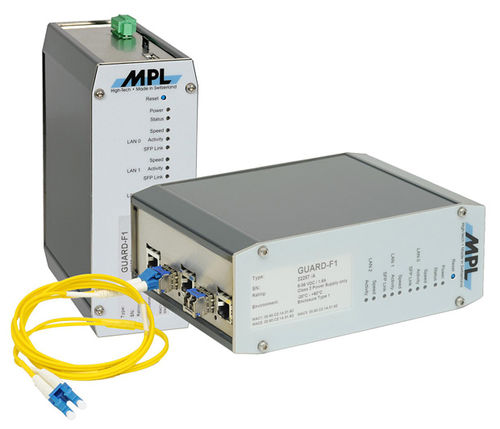

The MPL Networking range, GUARD-F1 is basically a rugged industrial Gigabit Firewall / Router. It is an ideal solution for all rugged industrial and defense applications, where security, quality, reliability, low power consumption and long-term availability are of prime importance.

The unit operates at a temperature range of -20°C to +60°C and is DIN rail (35mm) or wall mount complaint. The unit uses a RISC SoC 1.2GHz processor, in-built with a 512MByte DDR2 system and 512MByte NAND flash memory. It is fabricated with 3 x 1GBit Ethernet ports, 1 x USB2 and 1 x microSD slot. It is shock / vibration resistant and is EMC certified.

The preinstalled OpenWRT and Linux based distribution ensures the functionality required for operation as IPV4 / IPV6 firewall and router. The configurations are user-friendly and can be modified using a text editor. The GUARD-F1 offers several functions and protocols like,

-TCP/IP V4 and V6,
-Ipsec,
-QOS (Quality Of Service) support,
-SIIT(IPV4-over-IPV6 translation),
-Miredo/Teredo (IPV6 over IPV4 tunneling),
-PPP (Point-to-Point Protocol),
-Network address translation,
-Multi-WAN Setup etc.
