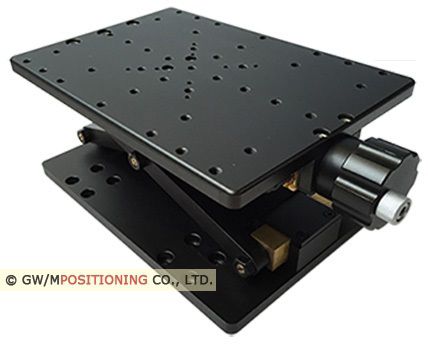

Translation positioning stage L02Z-120

Details : Fast and High Load Manual Lab Jacks, Up to 120 mm Range 1. Key Features - High Loading Applications up to 20 kg - Large-Area 165 x 280 mm Platform Size - M6 x 1.0 and M4 x 0.7 tapped holes - Mounting counterbored holes on bottom surface The model L02Z-120, Manual Lab Jack, combine precision vertical positioning in a stable design with a high load capacity. The adjustment mechanism provides smooth and fast motion while supporting loads up to 20 kg. The top plate has an array of 37 Metric M6 x 1.0 tapped mounting holes. And, the mounting counterbored holes have been added to the bottom plate for mounting the vertical stage on standard optical table. If you like to know more details about other Vertical Translation Stages or Manual Lab Jacks, please click Compare spec. between Vertical Positioners or view Related Products as below.
