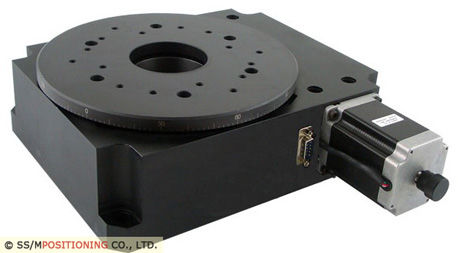

Rotary positioning stage MR200H

motorized1-axishigh-accuracy

Details : High-Performance, High-Load Motorized Rotation Stage 1. Key Features - 1° Graduations on Main Dial - 200 mm in Diameter of Platform Size - On-Axis Loads up to 90 kg (200 lbs) - Continuous 360° Rotation in a Long-Terms Using - Preloaded Worm Gear Drive Mechanism with Low Backlash - Optional function: Rotary Encoder, Servo Motor, Home Limit Switch The high-performance, high-load capacity Motorized Rotation Stage is a high-precision positioning productions designed and built in a various of positioning solutions to research and academia, photonics and optics, testing and measurement, life science and material science and industry markets. Applications of Rotation Stages include semiconductor wafer inspection or scribing, optics positioning, metrology, etc. The MR200H Rotation Stage provides arcsecond resolution when driven from a microstepping setting in stepper motor control. The Rotating Table provides continuous rotation of on-axis loads up to 90 kg and has a Ø60 mm clear aperture. The main body of the stage is made from alluminum alloy and can attach directly to an optical table. A worm gear drive mechanism with 180:1 dear ratio is used to transfer the rotary motion of the stepper motor into rotary motion of the carriage. The stepper motor used in 2 phases and 1.8° of step angle is ideally suited for microstepping applications that require the high resolution.
