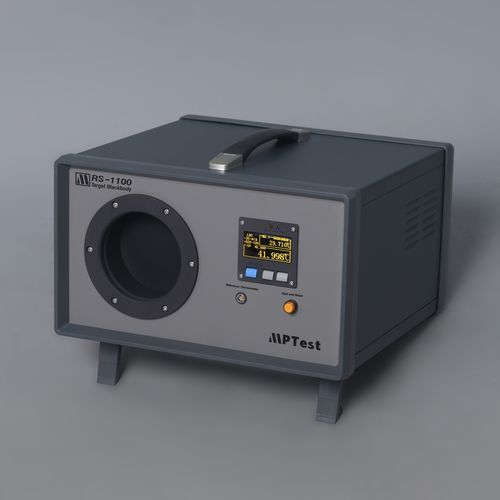

Portable black body calibration source RS-1100

for thermal cameras

The RS-1100 large-aperture flat-plate blackbody radiation source features a 100mm diameter target area. Utilizing liquid circulation temperature control, it achieves an emissivity greater than 0.98 within an operational temperature range of 15 to 50°C. This device can be used for temperature uniformity testing and calibration of infrared visual cameras. It is equipped with a 4mm diameter test aperture for temperature calibration and a 4-wire reference thermometer input port to ensure traceable temperature measurement. - Range (at 23°C ambient): Antifreeze: 15 ℃ to 50 ℃ (59°F to 122°F) - Working Area: Diameter 100mm (3.9"), Depth 47mm (1.9") - Tank Material: Copper - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Display accuracy: ±0.05 ℃ - Temperature Stability: ±0.005 ℃ /10min full range - Stabilization Time: 10~15 minutes - Effective Emissivity: 0.98 - Heating Time: 15 minutes from 25°C(77°F) to 45°C(113°F) - Cooling Time: 30 minutes from 45°C(122°F) to 35°C(95°F) - Operating Voltage: 110~240VAC±10%, 50~60Hz - Rated Power: Approximately 110W - Dimensions: 330mm (13") x 360mm (14.2") x 235mm (9.3") - Net Weight: Approximately 8.5 kg (18.7 lb)
