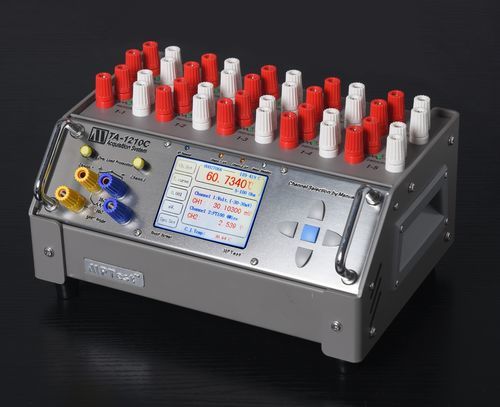

Platinum resistive thermometer TA-1210C

Pt100thermocouple2-wire

This temperature measurement and data acquisition device features 10 test channels and one reference temperature channel. It offers high 8-digit display resolution, curve display functionality, a built-in thermostatic unit, and a color touchscreen human-machine interface. The device supports 2-wire, 3-wire, and 4-wire resistance temperature detectors (RTDs) and thermocouples across its test channels, with multiple thermocouple cold junction compensation methods. It enables automated testing via RS-232 computer connectivity. Application: Automated acquisition and testing of industrial thermometers. - Display: 3.5-inch Touch Screen - Resolution: 8 Digits - V DC Range: -100 mV to 100 mV - V DC Max. resolution: 10 nV - Accuracy (Standard Channel, Range: -30mV~30 mV): 0.003 + 0.001(% measurement + % of range) - Accuracy (Measured Channel (2*5 Ch), Range: -100mV~100mV): 0.005 + 0.002(% measurement + % of range) - Resistance Measuring Mode: Two/Three/Four-Wire Measurement - Resistance Range: 5Ω to 4000Ω - Resistance Max. resolution: 10 uΩ - Measure Current: 1 mA /0.1mA (Constant Current Commutation) - Accuracy (Standard Channel, Range: 5Ω~100Ω): 0.0015 + 0.0005 (% measurement + % of range) - Accuracy (Measured Channel (2*5 Ch), Range: 5Ω~400Ω): 0.0015 + 0.001 (% measurement + % of range) - Accuracy (Measured Channel (2*5 Ch), Range: 5Ω~4000Ω): 0.005 + 0.002 (% measurement + % of range) - A DC Range: 2 mA to 30 mA - A DC Max. resolution: 100 nA - Accuracy (Measured Channel (2*5 Ch)): 0.01 + 0.005(% measurement + % of range) - EMF (Measured Channel (2*5 Ch)): ±0.2uV - Warm-up Time: 30min - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 30W - Dimensions: 260mm (10.2") x 190mm (7.5") x 130mm (5.1") - Net Weight: Approximately 6 kg (13.2 lb) - 10 test channels + 1 reference temperature channel - 8-digit display resolution - Curve display and color touchscreen HMI - Supports 2/3/4-wire RTDs and thermocouples - Multiple cold junction compensation methods - Automated testing via RS-232 - Built-in thermostatic unit - Application: Industrial thermometer testing and data acquisition Technical Specifications: - Display: 3.5-inch Touch Screen - Resolution: 8 Digits - V DC Range: -100 mV to 100 mV - V DC Max. resolution: 10 nV - Resistance Range: 5Ω to 4000Ω - Resistance Max. resolution: 10 uΩ - Measure Current: 1 mA /0.1mA - A DC Range: 2 mA to 30 mA - A DC Max. resolution: 100 nA - EMF: ±0.2uV - Warm-up Time: 30min - Operating Voltage: 110VAC ±10%, 60Hz - Rated Power: ~30W - Dimensions: 260mm x 190mm x 130mm - Net Weight: ~6 kg
