Annealing furnace
temperingquenchingaging

annealing furnace
annealing furnace
annealing furnace
Add to favorites
Compare this product


Characteristics

Function
annealing, tempering, quenching, aging, age-hardening
Configuration
pit
Heat source
electric resistance
Atmosphere
controlled atmosphere, inert gas
Other characteristics
programmable, high-temperature, custom, industrial, low energy consumption, large-size, environmentally friendly, high-volume, benchtop, for metallurgy, for steel, for copper
Maximum temperature

Max.: 850 °C
(1,562 °F)

Min.: 300 °C
(572 °F)

650 °C
(1,202 °F)

Capacity

560 l
(147.94 gal)

Description

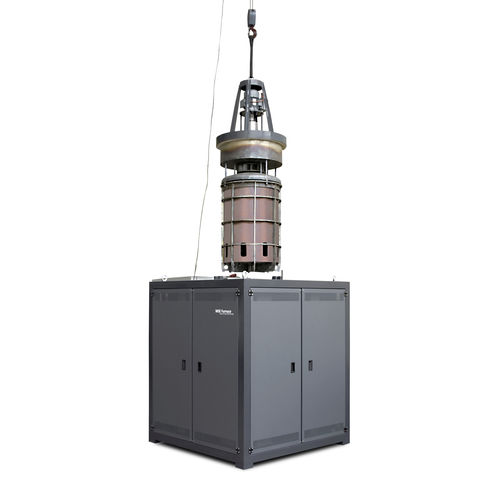

PRODUCT INFORMATION Designed for heat treatment of metals. Pit furnaces preferred for heat treatment of high and low carbon steels, copper alloys, bronze, brass etc. materials which makes such as screws, wire, rods or bolts. Pit / Retort furnaces are available in wide a ranges of volumes and temperatures from 300°C to 800°C continuous use. Please contact us for detailed information. STANDARD FEATURES •Programmable step controller via digital display •Observation of set and real temperature •Delayed start and program save feature •Temperature control via PID and ±10°C temperature display sensitivity •System protection for over temperature. Audio visual warning alarm •Temperature measurement via thermocouples •Error display in case a breakdown •Percentage of electrical energy consumption •Able to resume the program after the power failure •Top loading furnace design, loading via crane •Retort wirh fan circulation •Homogeneous heat distribution •Low external surface temperature (Ambient +40°C) thanks to double-layers steel construction •Epoxy painted galvanized-steel exterior APPLICATION NOTES For the maximum life of the furnace and the longer use of the furnace equipment, we recommend that the heating rate of 10°C/min. Flammable and explosive products must not be used in the furnace.
