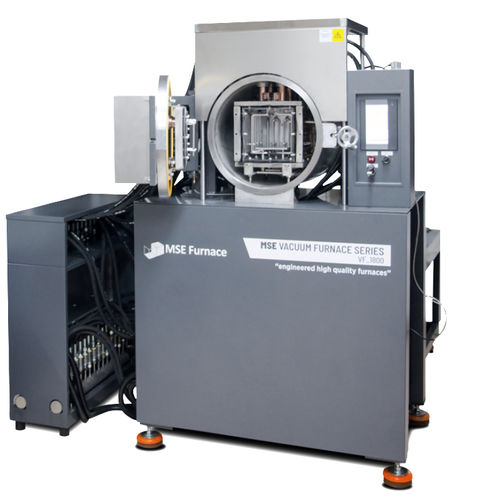

High-vacuum furnace VF series
brazinghardeningchamber

high-vacuum furnace
high-vacuum furnace
high-vacuum furnace
high-vacuum furnace
Add to favorites
Compare this product


Characteristics

Function
brazing, hardening
Configuration
chamber
Heat source
electric
Atmosphere
high-vacuum
Other characteristics
high-temperature, automatic, programmable, laboratory, for metallurgy
Capacity

5 l, 8 l, 12 l, 15 l, 18 l (1.3 gal)

Maximum temperature

1,100 °C, 1,600 °C, 1,700 °C, 2,200 °C (2,012 °F)

Min.: 450 °C (842 °F)

Max.: 2,500 °C (4,532 °F)

Description

PRODUCT INFORMATION MSE vacuum furnace is designed for the samples not to come into contact with air during the heat treatment and to complete the process with the least deformation. Also, the diffusion pump or turbomolecular pump can be selected according to customer demand. Vacuum furnace can be made from graphite, tungsten and molybdenum according to process needs. Please contact us for ultra high vacuum furnace requests. STANDARD FEATURES •Able to set programmable temperature, time and soaking time, adjustable vacuum volume, display of cooling water temperature and process details, and data save by USB connection feature via PLC controller, touch screen •Observation of set and real temperature •Temperature control via PID and ±1°C temperature display sensitivity •System protection for over temperature, audio visual warning alarm •Temperature measurement via thermocouples •Error display in case a breakdown •System doesn’t work unless the lid is closed •Heating on around ** •Exhaust gas outlet connected to inner volume •Sealed and reinforced ultra high vacuum cabin •Protective gas inlet and outlet •Water flowmeters for cooling water temperature through cabin and connections •Integrated ultra high vacuum pump system •High-quality insulated heat zone •Low energy consumption •Auto power cut while the lid is opening •Sideways lid opening •Low external surface temperature (Ambient +40°C) thanks to double-layers steel construction •Epoxy painted galvanized-steel exterior •Height adjustable, non-slip rubber feet.
