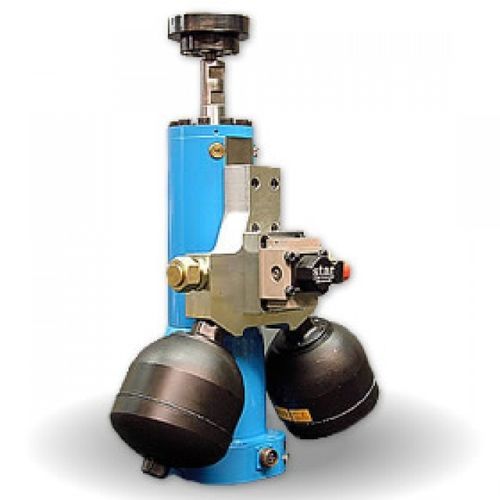

Hydraulic servo-cylinder SLZ series

rotarypistonfor mechanical testing

Servo cylinder
Servo cylinders convert hydraulic energy (controlled by servovalves) into mechanical energy. They are available in axial and torsional types: axial servo cylinders transfer load via linear displacement while torque is generated by rotation in torsional units. These cylinders are designed for use in servo-hydraulic testing machines and test systems for static and dynamic material and component testing.

Performance and specifications
All axial servo cylinders comply with strict amplitude and frequency specifications across various response curves. High sensitivity, very high piston speeds, mechanical strength and economical design result from accumulated experience, technical know-how and manufacturing quality.

Below are some models from our range:

SLZ 630-1000 kN

• Technical characteristics:
• Dimensions and weight of standard cylinders without valve:
• Load: 630 / 1000 kN
• Base diameter: 470 mm
• Height: 705 / 1050 mm
• Stroke: 100 / 250 mm
• Weight: 500 / 730 kg

SLZ 250-400 kN

• Technical characteristics:
• Dimensions and weight of standard cylinders without valve:
• Load: 250 / 400 kN
• Base diameter: 370 mm
• Height: 605 / 905 mm
• Stroke: 100 / 250 mm
• Weight: 295 / 560 kg

SLZ 100-160 kN

• Technical characteristics:
• Dimensions and weight of standard cylinders without valve:
• Load: 100 / 160 kN
• Base diameter: 275 mm
• Height: 605 / 905 mm
• Stroke: 100 / 250 mm
• Weight: 155 / 240 kg

SLZ 10-63 kN

• Technical characteristics:
• Dimensions and weight of standard cylinders without valve:
• Loads: 10 / 16 / 25 / 40 / 63 kN
• Base diameter: 205 mm
• Height: 479 / 539 / 829 mm
• Stroke: 40 / 100 / 250 mm
• Weight: 35 / 38 / 65 kg

MSLZ 7-15.8 kN

• Technical characteristics:
• Dimensions and weight of standard cylinders without valve:
• Loads: 5 / 15.8 kN
• Base dimensions: 86 × 88 mm
• Height: 209.5 / 263.5 / 363.5 mm
• Stroke: 20 / 50 / 100 mm
• Weight: 6.3 / 8.3 / 11.6 kg

Torsional servo cylinders (SDZ)

• Technical characteristics:
• Configuration: fixed or rotating
• Rated torque: 1–64 kN·m
• Amplitude: max. ±50°
• Torsion angle: max. 100°

Technical specifications

• Product family: Servo cylinders (axial servo cylinders and torsional servo cylinders)
• Load range (depending on model): from 5 kN to 1000 kN (see model data)
• Typical base diameters: 86 mm to 470 mm (model dependent)
• Height range (standard models, without valve): 209.5 mm to 1050 mm (model dependent)
• Stroke options: 20 mm to 250 mm (model dependent)
• Weight range: approx. 6.3 kg to 730 kg (model dependent)
• Torsional servo cylinders: rated torque 1–64 kN·m, amplitude max. ±50°, torsion angle max. 100°
