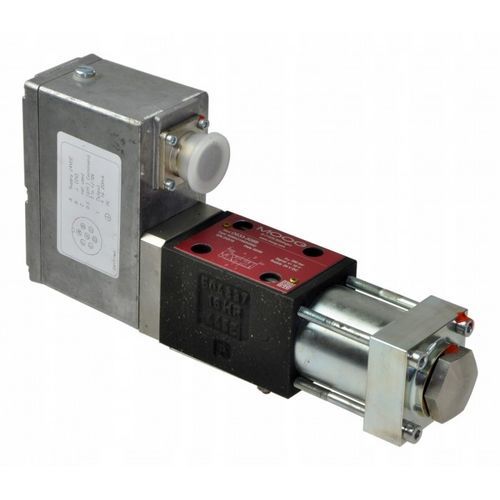

Electrically-actuated valve MOOG

electricservo-drivenregulating

Description
Servovalves of the MOOG D633 and D634 series are direct-coil controlled servovalves with electrical position feedback. The coil is driven via the fixed linear motor armature which moves the spool from the hydraulic neutral position in both directions. In the absence of a control signal the spool is held in neutral by a flat spring, providing a defined safe position in case of power loss. The valve electronics form a compact, integrated unit providing a closed-loop position control and efficient drive of the linear motor by pulse-width modulation (PWM). When using one of the supported control signal types, no additional interface is required.

Features

• Operation in 3rd/4th port mode and 2x2 double-flow mode for control of position, speed, force or flow rate of the actuator medium.
• Mounting/flange dimensions according to DIN 24340, CETOP 3 and CETOP 5.
• High force generation by a permanent-magnet linear motor.
• Elimination of the first hydraulic control stage, reducing non-productive losses.
• Flat spring returns spool to defined neutral safety position in case of power failure (e.g. cable break or emergency stop).
• Dynamic characteristics independent of supply pressure.
• Ingress protection IP65 (with recommended mating connector for the electrical plug).
• Low hysteresis and high sensitivity.
• Protection against incorrect connection and against control signals that exceed allowed values.
• Electrical zero adjustment to adapt the load position.
• Low-noise actual spool position signal for feedback.

Technical specifications

• Part number: Servovalve MOOG series D633, D634
• Availability: In stock
• Displayed price: 0.00 €
• Mounting/flange dimensions: DIN 24340, CETOP3, CETOP5
• Ingress protection: IP65 (with recommended mating connector)
• Control principle: Direct coil control via linear motor armature
• Position feedback: Electrical, with integrated closed-loop control
• Drive principle: Permanent-magnet linear motor
• Electronics: Integrated unit with pulse-width modulation (PWM)
• Safety features: Spring return to neutral on failure; protection against wrong connection and oversignal
• Operating modes: 3rd/4th port, 2x2 double-flow mode
• Dynamic behavior: Independent of supply pressure
