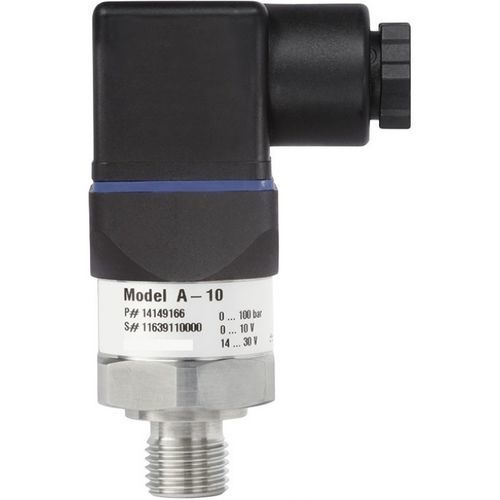

Relative pressure transmitter A-10
piezoresistive4-20 mA0-10 V

Relative pressure transmitter - A-10 - MT-Solutions GmbH - piezoresistive / 4-20 mA / 0-10 V
Relative pressure transmitter - A-10 - MT-Solutions GmbH - piezoresistive / 4-20 mA / 0-10 V
Relative pressure transmitter - A-10 - MT-Solutions GmbH - piezoresistive / 4-20 mA / 0-10 V - image - 2
Add to favorites
Compare this product

Characteristics

Pressure type
relative
Technology
piezoresistive
Output
4-20 mA, 0-10 V, 0-5 V
Electrical connection
M12 connector, bare wires
Process connection
G 1/4, NPT 1/4
Applications
process
Pressure range

Max.: 600 bar
(8,702.26 psi)

Min.: 0 bar
(0 psi)

Precision

0.25 %, 0.5 %

Description

Product overview
  • Pressure transducer for industrial process measurement
  • Measuring ranges: 0–1 to 0–600 bar
  • Non-linearity: 0.25% or 0.5%
  • Output signals: 4–20 mA, DC 0–10 V, DC 0–5 V, etc.
  • Electrical connections: angular connector Form A and C, M12 x 1 plug, 2 m cable entry
  • Process connections: G 1/4 A DIN 3852-E, 1/4 NPT and others


Product information
  • Item no.: Pressure sensor A-10
  • Availability: In stock
  • Displayed price: €0.00


Technical specifications
  • Model: A-10
  • Measuring range: 0–1 to 0–600 bar
  • Non-linearity: 0.25% or 0.5%
  • Output signals: 4–20 mA; DC 0–10 V; DC 0–5 V (variants)
  • Electrical connection: angular connector Form A & C; M12 x 1 plug; 2 m cable entry
  • Process connection: G 1/4 A DIN 3852-E; 1/4 NPT; other connection options available
  • Item no.: Pressure sensor A-10
  • Availability: In stock
