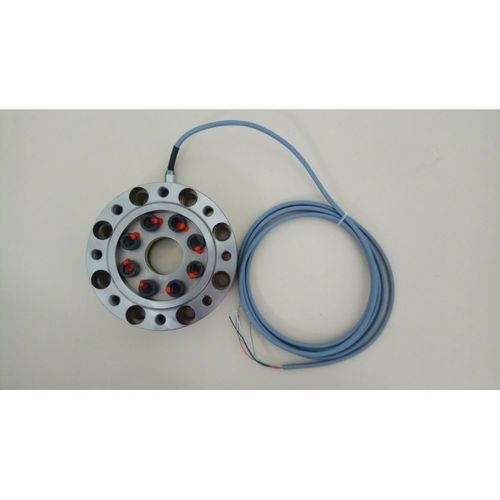

Rotary torque transducer HBM TB1A

High precisehollow-shafthigh-accuracy

Product description
High accuracy and linearity with a low hysteresis of up to 0.05%
Available in 7 nominal maximum torque capacities: 100 Nm; 200 Nm; 500 Nm; 1 kNm; 2 kNm; 5 kNm; 10 kNm
Central bore allows axial movement of the shaft
Flat design with small space requirements and a maximum installation length of 69 mm
Suitable for a wide range of industrial applications where compact installation and through-shaft mounting are required

Technical specifications

• Article number: HBM TB1A / 500N
• Availability: In stock
• Nominal maximum torque capacities: 100 Nm; 200 Nm; 500 Nm; 1 kNm; 2 kNm; 5 kNm; 10 kNm
• Accuracy / linearity: High accuracy and linearity
• Hysteresis: Up to 0.05%
• Design: Flat design with small space requirements
• Maximum installation length: 69 mm
• Central bore: Allows axial movement of the shaft
• Applications: Wide range of applications enabled by flat design and central bore
