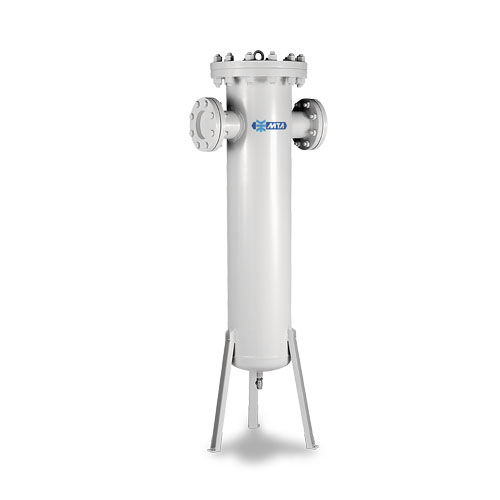

Compressed air filter PureTec – B
basketindustrialprocess

compressed air filter
compressed air filter
Add to favorites
Compare this product


Characteristics

Designed for
compressed air
Filtration element
basket
Applications
industrial, process
Material
carbon steel
Mounting
flange
Other characteristics
high-efficiency
Flow

Min.: 46 m³/min (1,624.475 ft³/min)

Max.: 550 m³/min (19,423.067 ft³/min)

Operating pressure

16 bar (232.06 psi)

Fluid temperature

120 °C (248 °F)

Description

Modern industrial processes have reached very high levels of sophistication and require compressed air systems characterised by higher air purity levels. Inadequate or low efficiency filtration can cause interruptions of service, high maintenance costs and loss of production. The PureTec - B filters have been designed specifically to prevent these problems, offering guaranteed and laboratory tested filtration efficiency, within a range of configurations studied to meet all requirements. The filters B are made up from a flanged carbon steel body containing one or more filtering elements characterised by maximum nominal filtration (99.9%) and very low pressure drops.

Catalogs

No catalogs are available for this product.

See all of MTA S.p.A‘s catalogs
