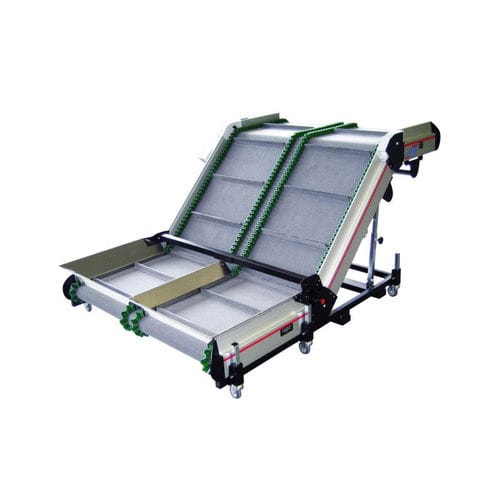

Belt conveyor ZL-HF 310

Z typefor the food industry

The belt conveyors of type ZL-HF 310 are particularly useful if steep belt lengths of approx. 2,500 mm and relatively short upper flat belt lengths are required. The gas pressure springs integrated in the underframe enable a very easy adjustment of the conveying angle. Thus, the conveyor technology is especially suited for applications where the disposal or feeding height is to be changed more often (e.g. due to different container heights). The upper flat belt freely overlaps in forward direction but it can be supported additionally, if required (e.g. with larger loads or longer flat belt parts). The lower flat belt area lays on the underframe so that a stable, closed frame is created. Hence, even larger conveyor belts can be handled easily. The minimum feeding height from the floor to the upper edge of the standard feed hopper is approx. 400mm. If necessary, the underframe of type HB 310, whose flat belt part is placed at a lower position, may be used alternatively. Therefore, lower feeding heights can be accomplished. Conveyor technology of this design is used in many areas, e.g. to remove parts from production machines such as punching shops, in the plastics and electronics industry, in surface treatment plants etc. Also, they are often used as feeders for components in machines for further processing, e.g. in the food industry or as feeding belt for recycling facilities or grinders.
