Belt conveyor ZL-HM 140

horizontalZ type

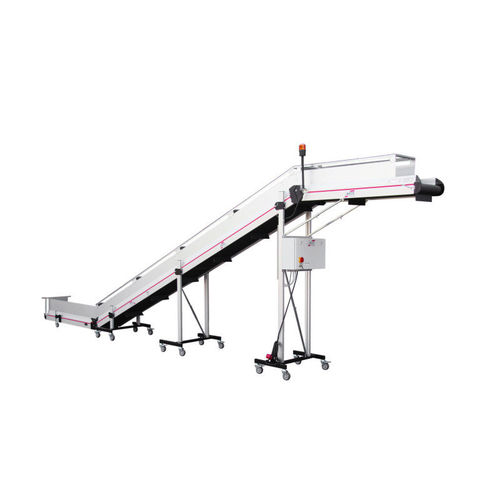

Long Z-belt conveyors are often engineered with the underframe, type HM 140. The H-shaped base stands with vertical supports, made of anodised aluminium profiles, always ensure a stable and safe standing. Additional lateral, crosswise and diagonal struts provide extra safety. Depending on the requirements and tasks to be performed, the underframe supports can be attached to all three conveyor parts (lower flat belt, steep belt, upper flat belt). A combination with other underframe base types is possible too. The flat belt of the belt conveyor shown in the picture is equipped with mobile individual supports to enable a lowest possible feeding height. The illustrated belt conveyor is designed for the application on a blow-mould machine where hot scrap (waste pieces) must be transported to a grinder. For this purpose, the angled belt conveyor has been equipped with a resistant polyester belt, which is also suitable for the use on angled belts. Apart from the scrap, the conveyor must also be able to convey complete canisters. For this purpose, the belt conveyor is provided with lateral guide plates which are covered from above with polycarbonate. In order to guarantee a good cooling of the parts, in spite of the cover, the lateral guide is equipped with ventilation slots.
