strainer filter / metal mesh / high-pressure / in-line

Add to MyDirectIndustry favorites
Compare this product
strainer filter / metal mesh / high-pressure / in-line strainer filter / metal mesh / high-pressure / in-line
{{requestButtons}}

Characteristics

  • Filtration element:

    strainer

  • Other characteristics:

    metal mesh, high-pressure, in-line, pressure

  • Operating pressure:

    2,100 bar (30,457.925 psi)

  • Flow rate:

    30 l/min (7.925 us gal/min)

Description

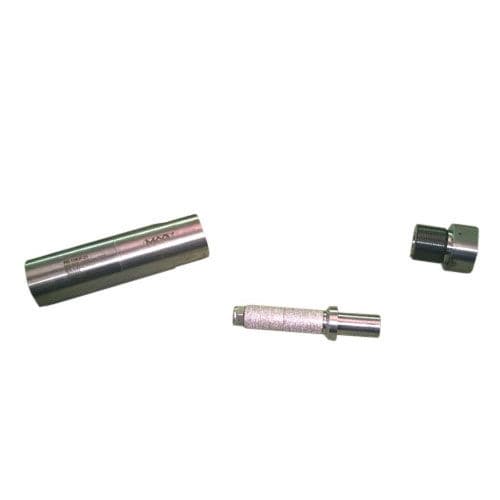

Multi-Coupling System® manufactures high pressure filters for loading and unloading lines.
The filtering element is a peculiarity of the filters, which is not made with sintered material, whose damage can cause more serious damages than impurities do, as it has a micro-perforated core made with very high resistance steel and wrapped up into metal mesh with a high filtering potential.
Filtering element collapse is almost inexistent and the circuit is protected against impurities.
Maximum operating rating 2100 bar, maximum allowed capacity 30 l/min.
