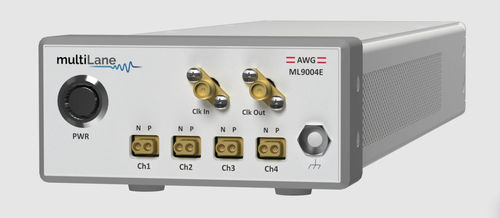

Pattern generator ML9004E

pulsearbitrary waveformprogrammable

The ML9004E consists of 4 differential transmit channels that can be used as Arbitrary Waveform Generators (AWG) or as Pattern Pulse Generators (PPG). It comes standard with a library of waveforms such as sine, square, triangle, or sinc for example. It has an intuitive graphical user interface to create PRBS bit sequences with FFE or pre- and post-emphasis. It supports SSC (Spread-Spectrum Clocking) and generating compliance test patterns with programmable RJ and SJ (dual tones) jitter injection, ISI and Cross-Talk emulation for PHY testing of MIPI A/C/D/M-PHY, PCIe, USB and others.
