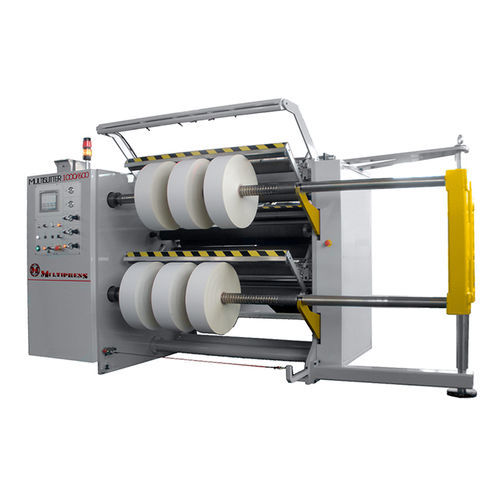

Automatic slitter-rewinder MULTISLITTER

doublefor paperfor the packaging industry

Designed for mid web band printers and converters. Robust structure with high-tech systems for cutting and rewinding a wide range of materials. • Main electrical and pneumatic controls placed on an easy access position. • Double electronic panel. • Front and back panels with security systems. • Unwinder with hydraulic shaftless system with independent or simultaneous movement of each arm. • Rewind clutched shafts with ball friction system, for driving a wide range of materials even with a large thickness variation across the width. • Tangential cutting discs with A.C. asynchronous motor. The system consists of an upper shaft with five (05) cutting discs and a counter-cutter shaft. • LASER projection system with integrated optics for an accurate cores placement. • Unload of the cut rolls towards the manual unloading device with axial rotation. • Max. Ø Master roll (mm) : 1000 - 1200 • Max. Ø Derivated rolls (mm) : 610 • Rollers width (mm) : 1100 - 1300 • Master roll width (mm) : 1000 - 1200 • Rewind Min. Width (mm) : 20 • Roll core internal Ø, master/derivated : 7.62 mm o 15.24 mm (3” o 6”) • Master roll, axial displacement : +/- 50 mm • Max. speed (m/min) : 450 • Unwinder : Shaftless
