Robust structure and modular architecture that grants a mounting procedure with high precision and repeatability, granting an accurate print register.

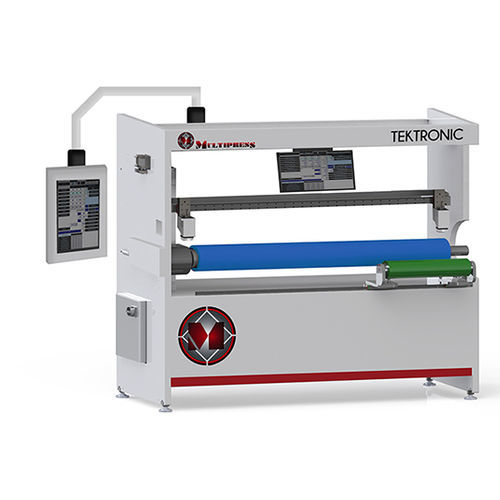

Sleeve type plate mounter
Pneumatic shaft system for mounting on cliché sleeves.
The pin on the air mandrel is according to the Stork / Rotec standard. Tape dispenser is standard.
Tape cutting system (optional).
Two digital cameras with autofocus for microdot mounting.
Cameras displacement is on linear ball bearings.
Wireless interface with MAXIFLEX printer to share sleeve size and pre-register position data (optional).
Automatic positioning of the cameras is motorized with electronic encoders, controlled by software.
The rotation of the mandrel is servo motorized, with advance movements according to program.
Control panel with dedicate touch screen and motorized large-format screen for the mounting procedure.
TMS 820 Size
L. 1160 x W. 620 x H. 1900 mm
-
Service area
1,5 - 2,0 m for side
-
Power supply
230 V, 50 Hz, 2 Ø
-
Compressed air
7/8 Bar, dry, filtered
-
Weight
0,8 Ton
