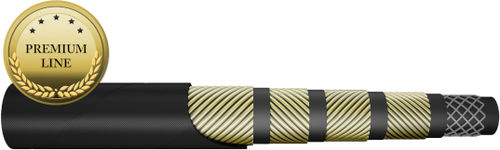

Hydraulic hose TFDM4SH seriesrubbersynthetic rubbersteel
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber, synthetic rubber, steel, synthetic
- Applications
- construction, marine
- Other characteristics
- extruded
- Inner diameter
Min.: 19 mm
(0.748 in)Max.: 50.8 mm
(2 in)- Outer diameter
Min.: 32 mm
(1.26 in)Max.: 68 mm
(2.677 in)- Pressure
Min.: 250 bar
(3,625.943 psi)Max.: 1,780 bar
(25,816.717 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
Construction, Marine & Offshore, Industrial Hydraulics, Cranes, Earth Moving
TYPE APPROVAL:
MSHA, ABS, MED, DNV - GL, BV.
APPLICABLE SPECS:
EXCEEDS EN 856 4SH - ISO 3862 4SH
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.
Reinforcement: 4 steel wire spirals.
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions. MSHA cover.
Recommended fluid: Petroleum-based hydraulic fluids (mineral oils), glycol-water based, water, lubricants.
