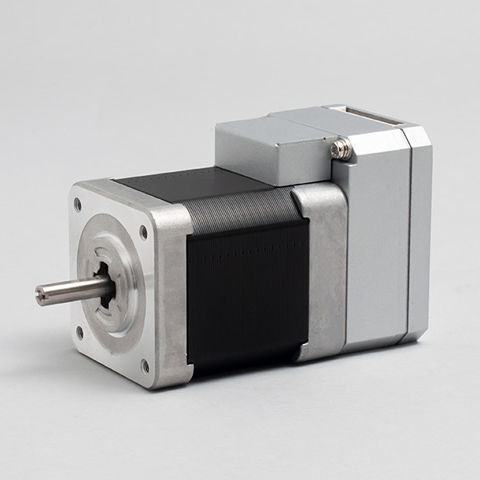

Servomotor with integrated controller CM1-x-17L30E

AC24 Vhigh-speed

Overview

• CM3+: Standard model. Servo motor which enables to build a system.
• CM3M: Modbus RTU (RS485) compatible model. A PLC or PC can be used as a master, and up to 32 axes can be connected as slaves.
• CM3: Low-cost innovative model with improved torque and high-speed performance from CM1 to achieve servo-equivalent performance with a stepping motor.
• CM2: High-end model. Extensive functions such as PLC function, daisy-chain, interpolation function, etc.
• CM1: Legacy model. Long seller with better resolution, quietness, and functionality compared to CM3.

Basic performance (summary by model)
Models: CM3+ / CM3M / CM3 / CM2 / CM1
Motor: Stepper Motor / Stepper Motor / Stepper Motor / AC Servo Motor / Stepper Motor
Input Voltage: DC24V / DC24V / DC24V / AC100–240V / DC24V
Motor Size: □42・□56 / □42・□56 / □42・□56 / □56・□60 / □28・□42・□56
Output: 60W–100W / 60W–100W / 60W–100W / 100W–400W / 9W–45W
Rated Torque [N·m]: 0.25–1.20 / 0.25–1.20 / 0.25–1.20 / 0.19–1.09 / 0.027–0.87
Max. Torque [N·m]: 0.32–1.50 / 0.32–1.50 / 0.32–1.50 / 0.57–3.82 / 0.078–1.24
Max. Speed [min⁻¹]: 5,000 / 5,000 / 5,000 / 8,000 / 3,000
Resolution [ppr]: 300–12,000 / 300–12,000 / 300–12,000 / 200–50,000 / 200–50,000
I/O: Input 4 / Output 4 / Input 4 / Output 4 / Input 6 / Output 4 / Input 6 / Output 4 / Input 4 / Output 2
Controlled from upper device: ○ / ○ / ○ / ○ / ○
Program control (built-in function): ○ / － / － / ○ / ○
Logical operation (built-in function): ○ / － / － / ○ / －
Daisy chain (multi-axis control): ○ / － / － / ○ / ○
Interpolation (straight, circular): － / － / － / ○ / －
Number of points: 250 / 16 / 32 / 200 / 25
Number of program banks: 30 / － / － / 30 / 30
Teaching Function: ○ / ○ / － / ○ / －

Control methods / Communication (summary)
RS232C: CM3+ ○ / CM3M － / CM3 ○ / CM2 ○ / CM1 ○
Pulse control: CM3+ － / CM3M － / CM3 ○ / CM2 ○ / CM1 ○
I/O control: CM3+ ○ / CM3M ○ / CM3 ○ / CM2 ○ / CM1 ○
EtherCAT: CM3+ (development) / others －
Modbus RTU: CM3+ － / CM3M ○ (RS485) / CM3 － / CM2 ○ (RS232C) / CM1 －
EtherNet/IP: (development) / not available for other models

Encoder
CM3+: Incremental ○ and * Single-turn ABS noted
CM3M: Incremental ○ and * Single-turn ABS noted
CM3: Incremental ○ and * Single-turn ABS noted
CM2: Incremental ○
CM1: Incremental ○

Gearbox for COOL MUSCLE (applicability)
Applicable models: CM3+ applicable / CM3 applicable / CM2 applicable / CM1 applicable
Gearbox types shown: CM-AB Series (Standard Type), CM-ABR Series (Standard Right Angle), CM-PA2 Series (Low Cost Type with Flange)
Common gearbox sizes: □42・□60 for listed gearbox types
Reduction ratio range: 3–100 (varies by gearbox type)
Reduced Backlash: CM-AB Series 3–7 minutes; CM-ABR Series 4–9 minutes; CM-PA2 Series 8・10 minutes

Technical specifications

• Product family: CM series (CM3+, CM3M, CM3, CM2, CM1).
• Motor types available: Stepper Motor (majority of CM models) and AC Servo Motor (CM2).
• Power supply: DC24V for most stepper models; AC100–240V for CM2 (AC servo).
• Output power range across series: 9W up to 400W depending on model.
• Torque range: Rated torque from 0.027 N·m up to 1.20 N·m (varies by model); max torque up to 3.82 N·m for CM2.
• Max. rotational speed: up to 8,000 min⁻¹ (CM2); stepper models up to 5,000 min⁻¹ (CM1–CM3 variants).
• Resolution: up to 50,000 ppr supported on CM2/CM1 (encoder dependent); steppers support 300–12,000 ppr on other models.
• Embedded functions (varies by model): program control, logical operation, daisy-chain multi-axis, interpolation for CM2, teaching functions on several models.
• Communication options vary by model: RS232C, Modbus RTU (RS485) on CM3M, development support for EtherCAT/EtherNet/IP on certain models.
• Available compatible gearboxes: CM-AB, CM-ABR, CM-PA2 series with sizes □42/□60 and reduction ratios 3–100.
