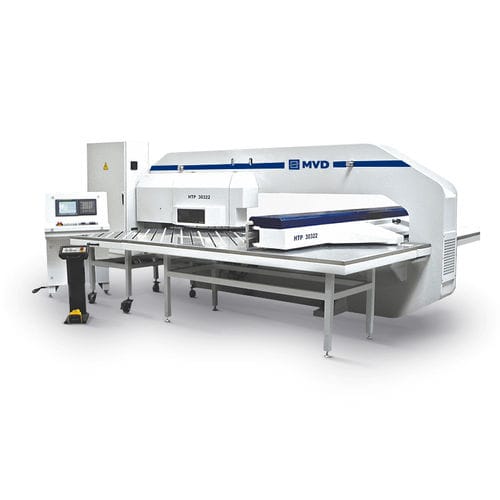

Automatic punching press IPunch series

hydraulicsheet metalcutting

MVD Turret Punch presses are produced as a closed type rigid steel constructions in to a robust structure to provide minimum deflection during operation. Complete solutions with effective costs. General Features • Operating System is CNC and hydraulic. • MVD Turret Punch 4 axes controlling; X, Y axes for movement of sheet, T axes: Turret rotation, C axis: Auto-index station rotation for indexing tools. • 32 station Turret as to allow punching complicated, multi and different size holes parts in a single operation. • Auto–index stations can punch to required angle for various angle shape parts with CNC controller. • MVD special narrow bottom table. • Precision forming and roller tools can be use on the Turret, therefore HTP Turret punch provides. Punch Technology • Special Tool drawing • Auto-index functions • Auto clamp positioning • Automatic Sheet Repositioning • CNCCAD provides automatic or manual nesting for effective use of sheet metal • Roller Tools usable • Common cut function • Ribbon cutting for splitting sheet • Auto index reducing cycle time functions with rotations to nearest position • Tools punch sequence selection Design to Production • Metalix CNCCAD CAD/CAM software offers an integrated system cover to the user which includes the complete cycle of CNC operation. Standard Equipments • 4 Axes CNC System • FANUC PC CNC unit, servo motors and drivers • Rexroth and HL hydraulic unit • 32 Stations Turret 10 A Stations 16 B Stations 2 C Stations4 D Station (2 of them Auto Index) • Repositioning of Clamps • Automatic reference • CAD/CAM program • Automatic Clamping
