Blade grinding machine LT500circular knifePLC-controlledautomatic
Add to favorites
Compare this product
Characteristics
- Applications
- for blades, circular knife
- Control type
- automatic, PLC-controlled
- Number of axes
- 2-axis
- Features
- stationary
- Other characteristics
- electric motor driven
- Spindle speed
Min.: 3 rpm
(19 rad.min-1)Max.: 35 rpm
(220 rad.min-1)- Power
1.8 kW
(2.45 hp)- X travel
220 mm
(8.66 in)- Y travel
220 mm
(8.66 in)- Grinding wheel diameter
150 mm, 250 mm
(6 in, 10 in)
Description
Overview
Construction and performance
Motor and control
Grinding tools and capacities
Options and accessories
Applications

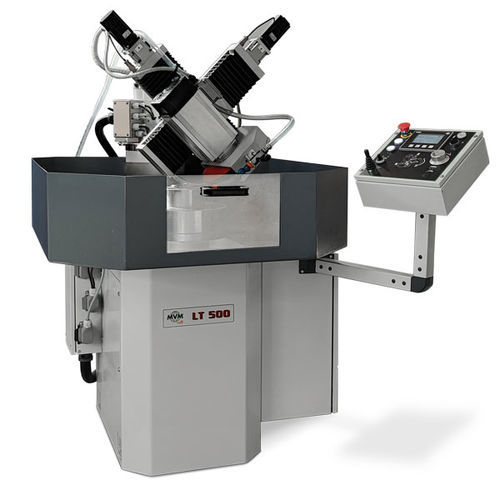

- LT500 circular knife grinding machine for sharpening chamfered circular knives up to Ø500 mm.
- Suitable for single and multiple counter blades.
Construction and performance
- Rigid base, heavy structure and balanced masses to minimize vibrations, achieving low surface roughness and fine surface finish.
Motor and control
- Electric motor 1.8 kW (2.5 HP) mounted on two motorized linear stepper axes.
- Siemens PLC with touchscreen and intuitive software; programmable automatic work cycle.
- Head rotation 0°–90°; hundredth-scale head descent with electronic handwheel for precision movements; wheel rotation reversal; table speed variator 3–35 rpm.
Grinding tools and capacities
- Tangential grinding wheel Ø250 mm; optional face grinding wheel Ø150 mm.
- Working capacity up to Ø500 mm; movable column allows machining over 300 mm from the table.
Options and accessories
- Magnetic table Ø300 mm or larger (optional).
- Magnetic or paper filtration unit with external tank.
Applications
- Industrial sharpening of circular knives for food processing, paper, textiles and related sectors.
VIDEO
Catalogs
LT 500
4 Pages
