Flat sharpening machine

for bladesverticalwith magnetic chuck

Product overview
Devices and fixtures for centering, locking and sharpening blades used in the food industry, designed for mincers, slicers, grids and discs. Solutions cover reversible and non‑reversible blades and enable precise angle adjustment and quick blade changes.

Tools and systems

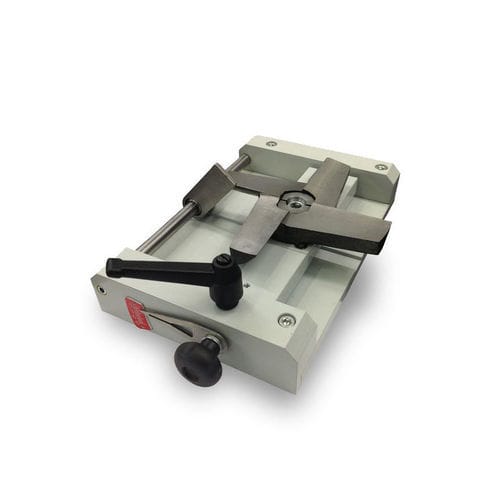

• Fixture for clamping and sharpening mincer blades up to Ø 300 mm with centering flange hub for reversible blades; recess angle adjustable up to 15° and cutting angle settable to 0° per blade. Mobile reference for rapid blade change and rotation stop for angle sharpening.
• Centering and locking flange system for flat mincer blades to ensure all cutting edges at 0°.
• Fixture with retractable centering expansion for non‑reversible blades, adjustable recess angle up to 15°, locking brake for angle sharpening and mobile reference for blade replacement.
• Centering system for grids and flat plate mincer blades mounted on a rotating magnetic chuck for stable, repeatable positioning.
• LA500 vertical‑axis sharpening machine with rotating magnetic chuck, suitable for sharpening blades, discs and grids from mincer/slicer machines.

Applications
Designed for maintenance and reconditioning of mincer and slicer components: reversible and non‑reversible blades, grid plates and slicing discs. Suited to workshop or service environments requiring repeatable centering and controlled bevel geometry.

Recommended machine
The LA500 vertical‑axis sharpener with rotating magnetic chuck is recommended for precision sharpening of blades, grids and discs; compatible with the centering and fixturing systems listed above.

Gallery & resources
Product images, assembly examples, a product video, tutorial and a multilingual technical brochure are available to document configurations and setup procedures.

Technical specifications

• Maximum blade diameter: 300 mm
• Recess (back) angle: adjustable up to 15°
• Cutting angle: configurable to 0° per blade (where applicable)
• Centering flange hub for reversible blades
• Retractable centering expansion for non‑reversible blades
• Mobile reference for rapid blade exchange
• Rotation stop and locking brake for angle sharpening
• Centering system for grids and flat plates on rotating magnetic chuck
• Recommended sharpener: LA500 vertical axis with rotating magnetic chuck
