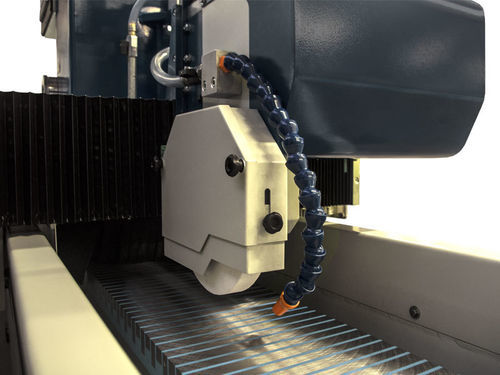

Grinding head TT250
Add to favorites
Compare this product
Description
Description
The TT250 tangential additional grinding head is an optional right-side unit mounted on the carriage head. It features two motorised axes (Y and Z) and is integrated with PLC control for automated operation. The unit is compatible with KX250 and subsequent models and is designed to expand grinding capabilities without modifying the main head.
Model details
TT250 is supplied with a 1.5 kW (2 HP) grinding motor. Downfeed and transverse feed can be configured as manual controls or as automatic movements managed by the PLC, depending on the selected option.
Notes
Product imagery is for illustration only; actual configuration, accessories and appearance may vary according to options and product improvements.
Caractéristiques / spécifications techniques
The TT250 tangential additional grinding head is an optional right-side unit mounted on the carriage head. It features two motorised axes (Y and Z) and is integrated with PLC control for automated operation. The unit is compatible with KX250 and subsequent models and is designed to expand grinding capabilities without modifying the main head.
Model details
TT250 is supplied with a 1.5 kW (2 HP) grinding motor. Downfeed and transverse feed can be configured as manual controls or as automatic movements managed by the PLC, depending on the selected option.
Notes
Product imagery is for illustration only; actual configuration, accessories and appearance may vary according to options and product improvements.
Caractéristiques / spécifications techniques
- Grinding wheel maximum diameter: Ø250 mm
- Grinding wheel centre-hole diameter: Ø50 mm
- Grinding motor: 1.5 kW (2 HP)
- Y axis (transverse movement) travel: 200 mm
- Two motorised axes: Y and Z (PLC controlled)
- Mounting position: right side of the carriage head
- Compatibility: available from model KX250
- Feed modes: manual or PLC-controlled automatic downfeed and cross-feed
